HGW HYDRAULICS

2603-16-16-16-SS

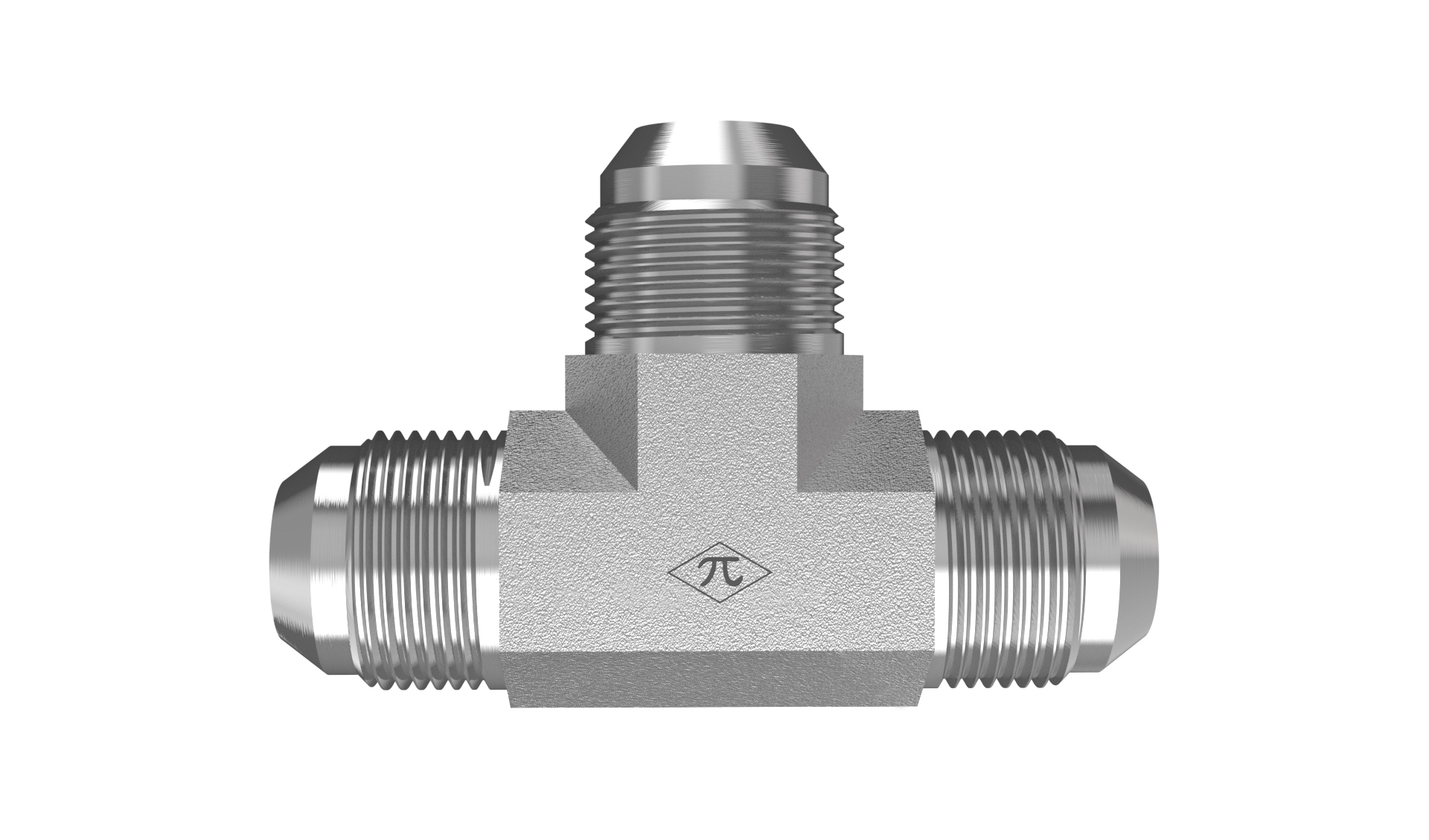

1" Male JIC x 1" Male JIC x 1" Male JIC

2603-16-16-16-SS is a 1" Male JIC x 1" Male JIC x 1" Male JIC in the 2603-FG Series. For joining three 37° flared tubes or lines in a tee configuration.

  • Stainless Steel
  • Passivated
  • Union Tee
$112.43
(0) Write a Review
SKU:
2603-16-16-16-SS

Product Details

Connection A
TypeMale JIC
Tube OD1"
StandardSAE J514 - Class 2A Thread
Thread Type1-5/16-12 UN
Connection B
TypeMale JIC
Tube OD1"
StandardSAE J514 - Class 2A Thread
Thread Type1-5/16-12 UN
Connection C
TypeMale JIC
Tube OD1"
StandardSAE J514 - Class 2A Thread
Thread Type1-5/16-12 UN
Connection D
Specifications
MaterialStainless Steel
PlatingPassivated
ShapeUnion Tee
Weight0.97 lb
Cross References
Aeroquip259-2033-16-16
Parker16 JTX-SS
SAE Ref.SAE J514 16-16-16 070401S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
