HGW HYDRAULICS

2603-20-20-16-SS

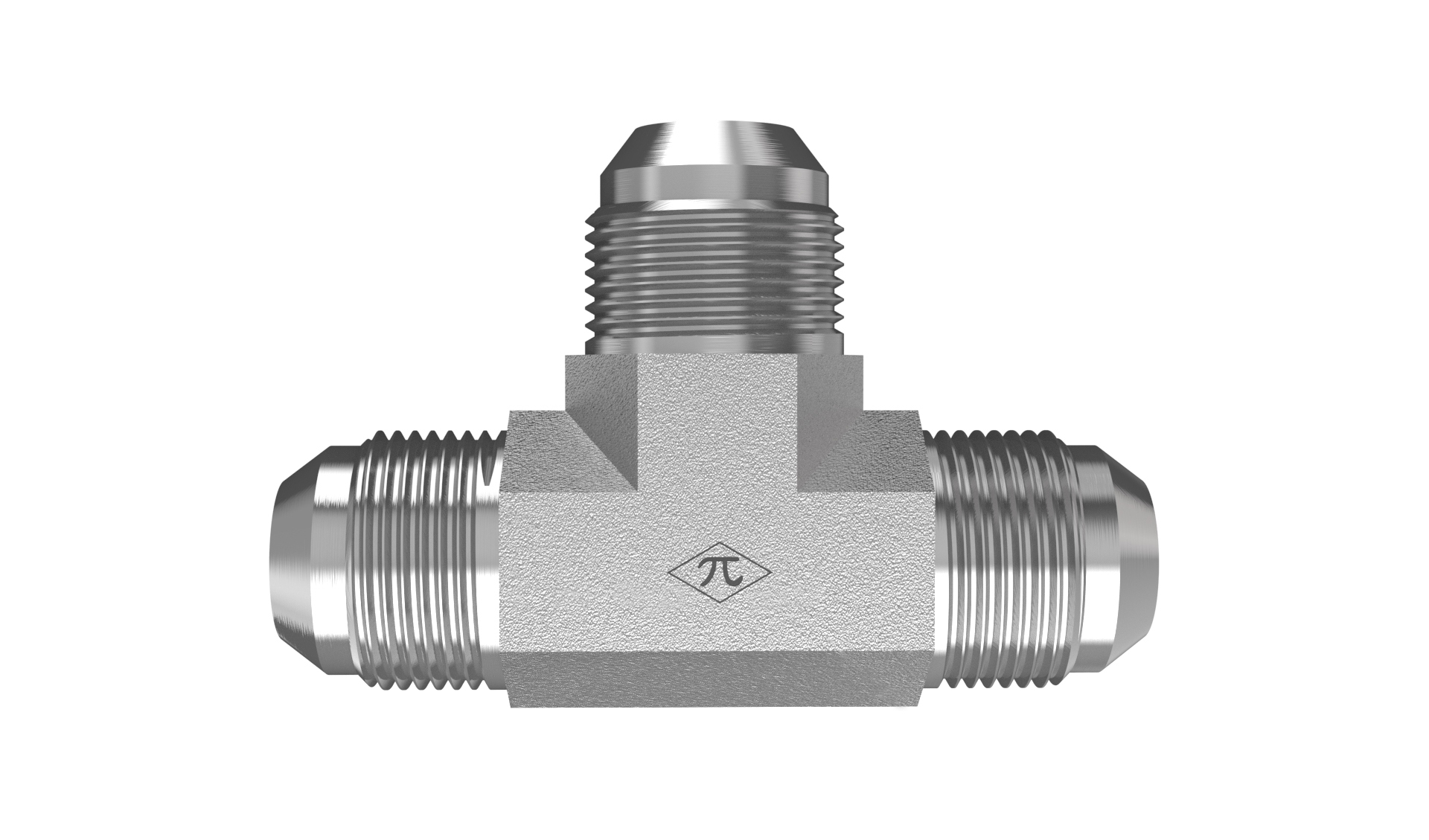

1-1/4" Male JIC x 1-1/4" Male JIC x 1" Male JIC

2603-20-20-16-SS is a 1-1/4" Male JIC x 1-1/4" Male JIC x 1" Male JIC in the 2603-FG Series. For joining three 37° flared tubes or lines in a tee configuration.

  • Stainless Steel
  • Passivated
  • Union Tee
$970.62
(0) Write a Review
SKU:
2603-20-20-16-SS

Product Details

Connection A
TypeMale JIC
Tube OD1-1/4"
StandardSAE J514 - Class 2A Thread
Thread Type1-5/8-12 UN
Connection B
TypeMale JIC
Tube OD1-1/4"
StandardSAE J514 - Class 2A Thread
Thread Type1-5/8-12 UN
Connection C
TypeMale JIC
Tube OD1"
StandardSAE J514 - Class 2A Thread
Thread Type1-5/8-12 UN
Connection D
Specifications
MaterialStainless Steel
PlatingPassivated
ShapeUnion Tee
Weight1.48 lb
Cross References
Aeroquip259-2033-16-20-20
Parker20-20-16 JTX-SS
SAE Ref.SAE J514 20-20-16 070401S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
