HGW HYDRAULICS

2605-03-02-03-FG

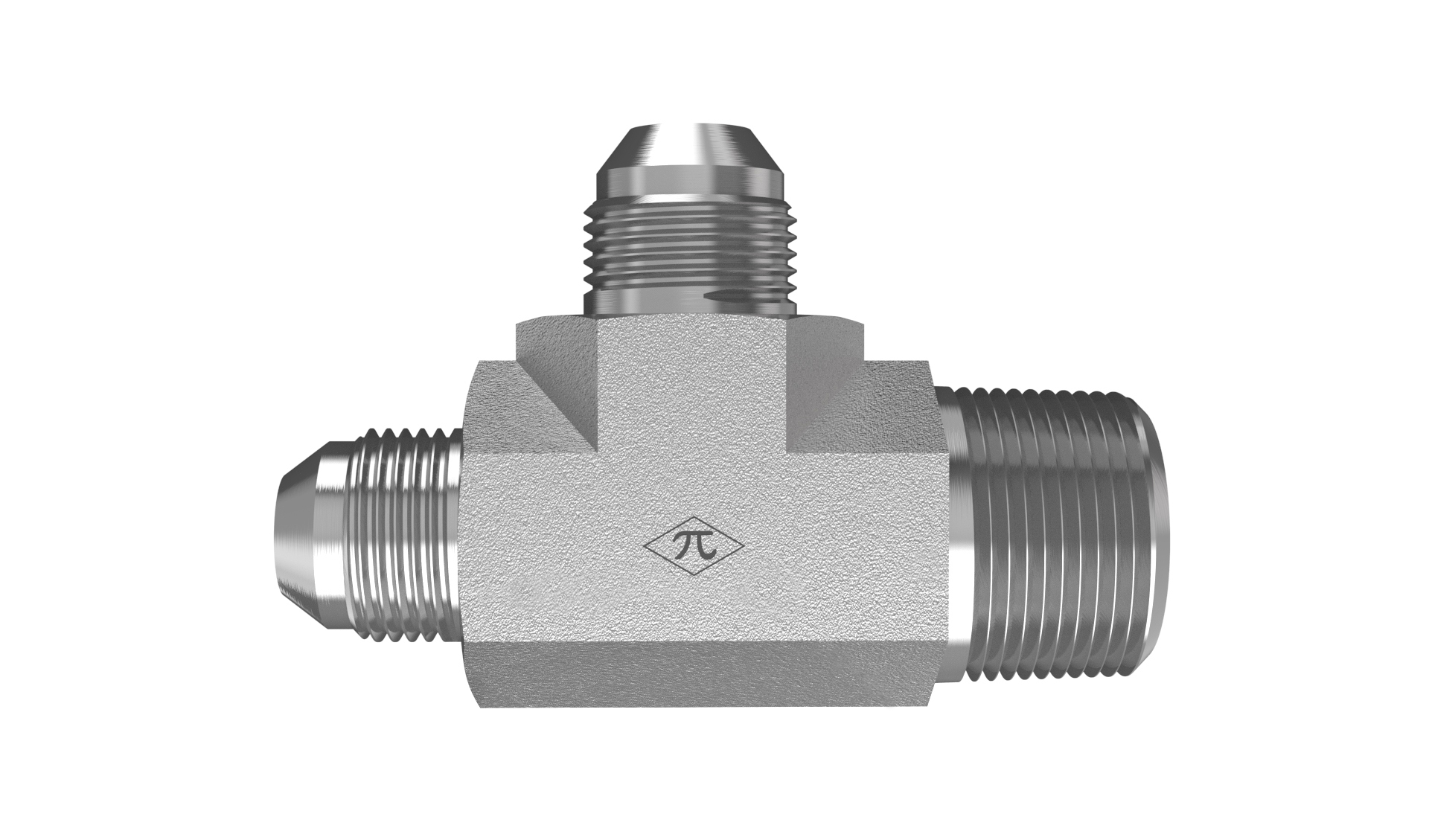

3/16" Male JIC x 1/8" Male NPTF 30° x 3/16" Male JIC

2605-03-02-03-FG is a 3/16" Male JIC x 1/8" Male NPTF 30° x 3/16" Male JIC in the 2605-FG Series. For connecting two 37° flared tubes or lines to pipe on the run without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Male Run Tee
$5.58
(0) Write a Review
SKU:
2605-03-02-03-FG

Product Details

Connection A
TypeMale JIC
Tube OD3/16"
StandardSAE J514 - Class 2A Thread
Thread Type3/8-24 UNF
Connection B
TypeMale NPTF 30°
Pipe Size1/8"
StandardSAE J476
Thread Type3/8-24 UNF
Connection C
TypeMale JIC
Tube OD3/16"
StandardSAE J514 - Class 2A Thread
Thread Type1/8-27 NPTF
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Run Tee
Weight0.07 lb
Cross References
Aeroquip2028-2-3S
Parker3 RTX-S
SAE Ref.SAE J514 3-2-3 070424C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
