HGW HYDRAULICS

2605-08-04-08-FG

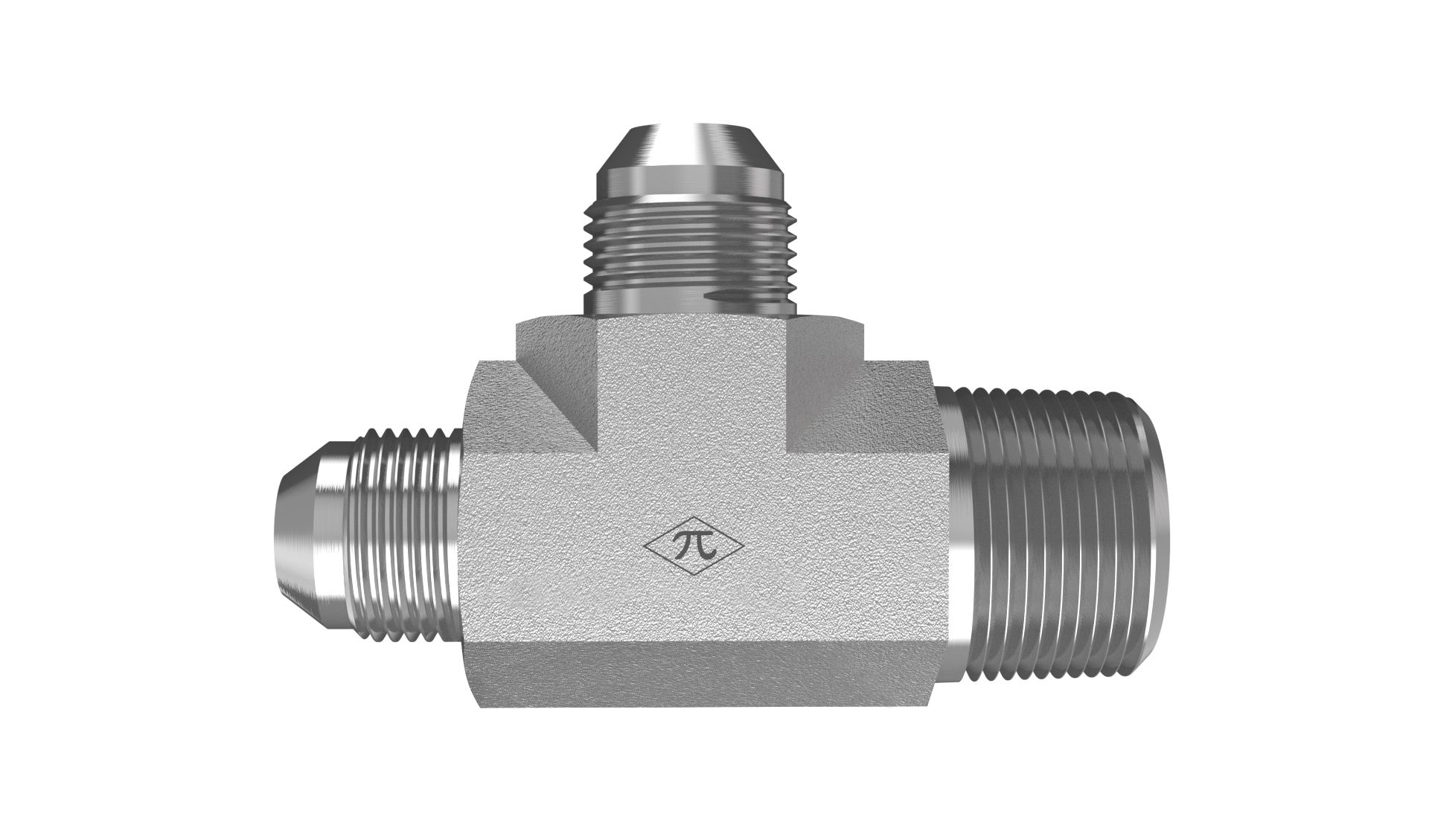

1/2" Male JIC x 1/4" Male NPTF 30° x 1/2" Male JIC

2605-08-04-08-FG is a 1/2" Male JIC x 1/4" Male NPTF 30° x 1/2" Male JIC in the 2605-FG Series. For connecting two 37° flared tubes or lines to pipe on the run without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Male Run Tee
$10.30
(0) Write a Review
SKU:
2605-08-04-08-FG

Product Details

Connection A
TypeMale JIC
Tube OD1/2"
StandardSAE J514 - Class 2A Thread
Thread Type3/4-16 UNF
Connection B
TypeMale NPTF 30°
Pipe Size1/4"
StandardSAE J476
Thread Type3/4-16 UNF
Connection C
TypeMale JIC
Tube OD1/2"
StandardSAE J514 - Class 2A Thread
Thread Type1/4-18 NPTF
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Run Tee
Weight0.24 lb
Cross References
Aeroquip2028-4-8S
Parker8-4-8 RTX-S
SAE Ref.SAE J514 8-4-8 070424C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
