HGW HYDRAULICS

2605-12-08-12-FG

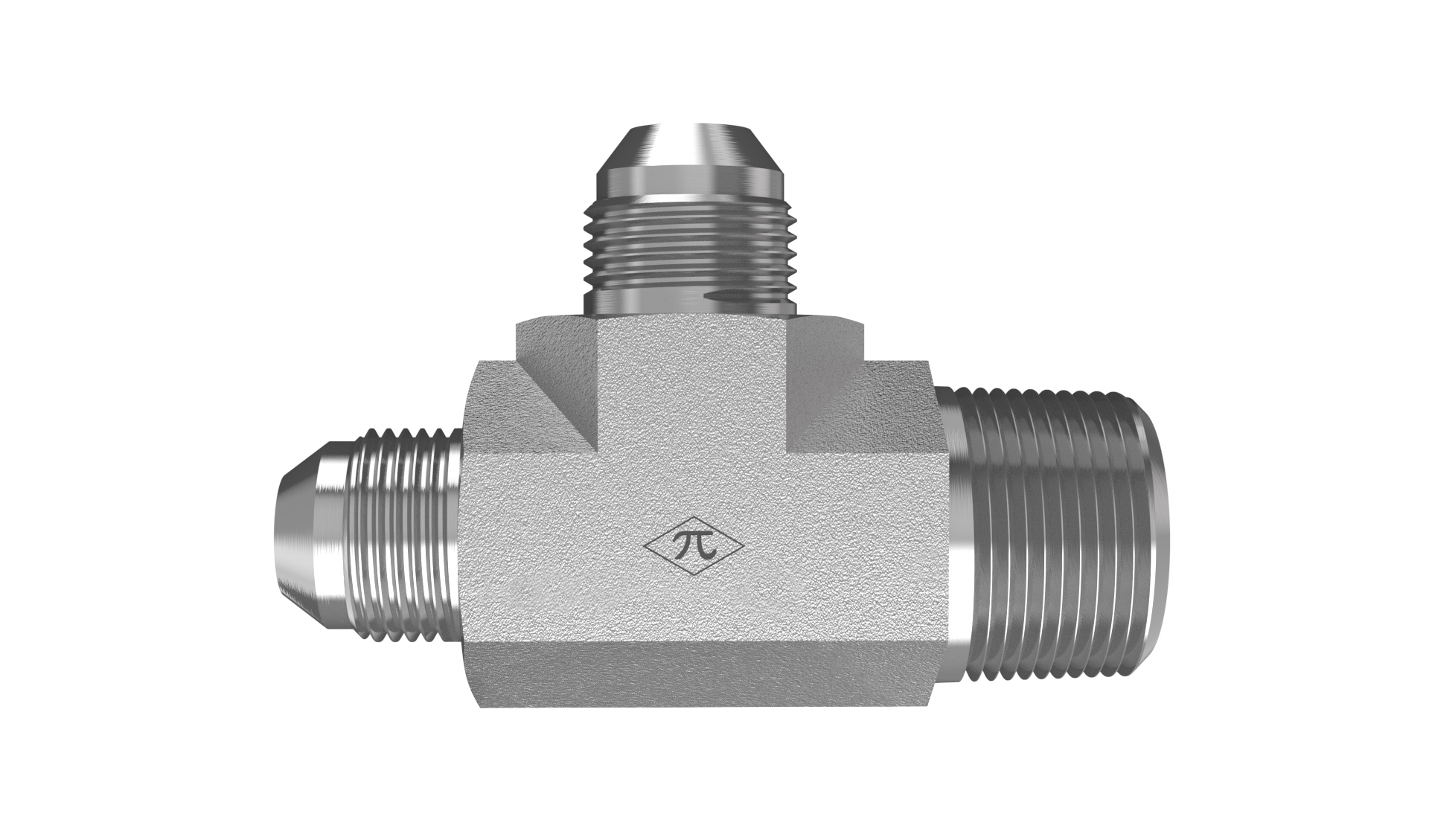

3/4" Male JIC x 1/2" Male NPTF 30° x 3/4" Male JIC

2605-12-08-12-FG is a 3/4" Male JIC x 1/2" Male NPTF 30° x 3/4" Male JIC in the 2605-FG Series. For connecting two 37° flared tubes or lines to pipe on the run without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Male Run Tee
$22.08
(0) Write a Review
SKU:
2605-12-08-12-FG

Product Details

Connection A
TypeMale JIC
Tube OD3/4"
StandardSAE J514 - Class 2A Thread
Thread Type1-1/16-12 UN
Connection B
TypeMale NPTF 30°
Pipe Size1/2"
StandardSAE J476
Thread Type1-1/16-12 UN
Connection C
TypeMale JIC
Tube OD3/4"
StandardSAE J514 - Class 2A Thread
Thread Type1/2-14 NPTF
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Run Tee
Weight0.60 lb
Cross References
Aeroquip2028-8-12S
Parker12-8-12 RTX-S
SAE Ref.SAE J514 12-8-12 070424C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
