HGW HYDRAULICS

2605-24-20-24

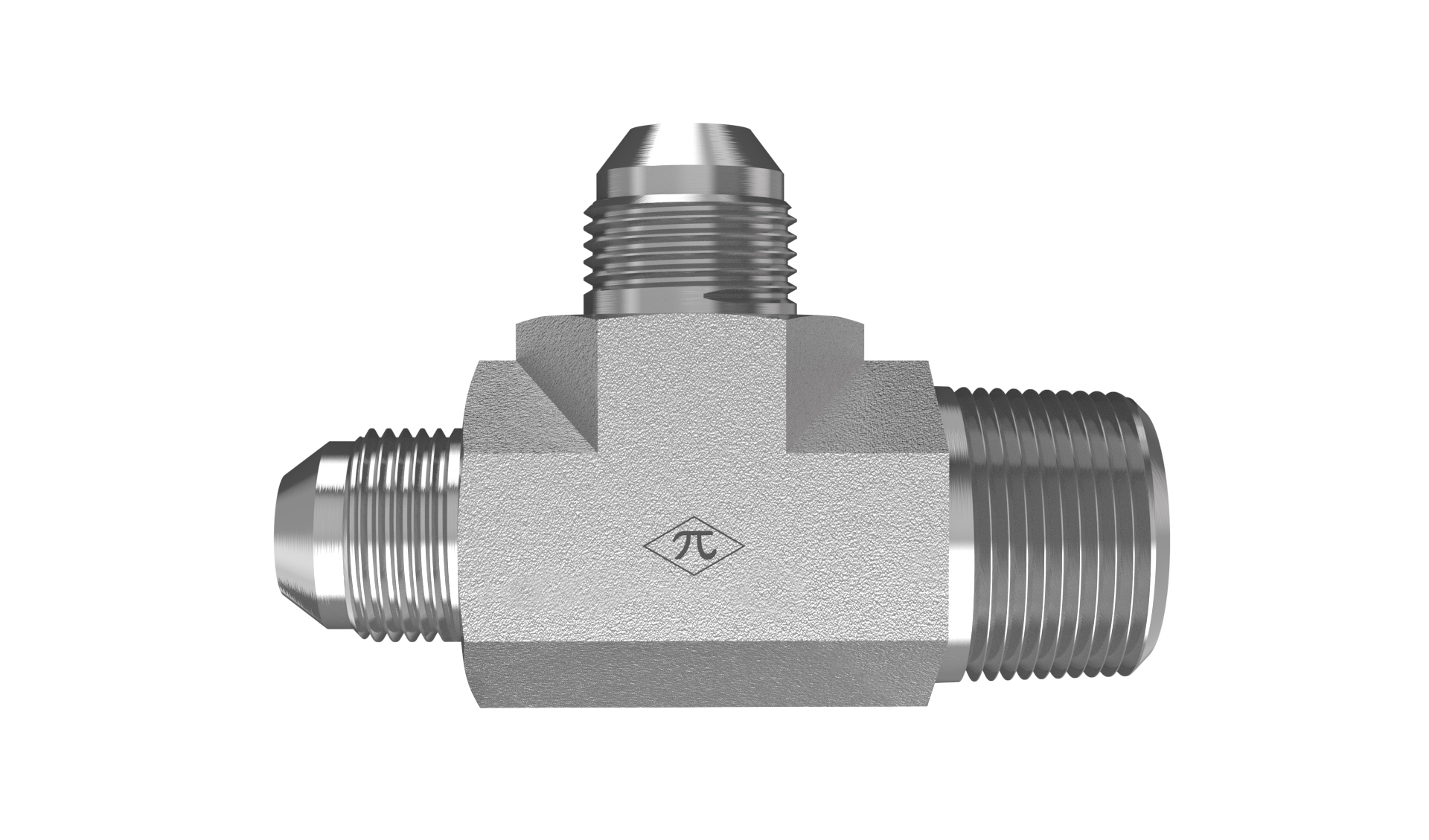

1-1/2" Male JIC 37° Flare × 1-1/4" Male NPTF × 1-1/2" Male JIC 37° Flare · Run Tee

The HGW 2605-24-20-24-FG is a run tee combining 1-1/2" male JIC 37° flare, 1-1/4" male NPTF, and 1-1/2" male JIC 37° flare. Made from trivalent-zinc-plated steel, it uses SAE J514 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Male Pipe Run Tee
$177.06
(0) Write a Review
SKU:
2605-24-20-24

Product Details

Connection A
TypeMale JIC 37° Flare
Tube Size1-1/2"
StandardSAE J514 · Class 2A Thread
Thread1-7/8-12
Connection B
TypeMale NPTF
Pipe Size1-1/4"
StandardSAE J476
Thread1-1/4-11-1/2
Connection C
TypeMale JIC 37° Flare
Tube Size1-1/2"
StandardSAE J514 · Class 2A Thread
Thread1-7/8-12
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Pipe Run Tee
Weight1.84 lb
Cross References
Aeroquip2028-20-24S
Parker24-20-24 RTX-S
SAE Ref.SAE J514 24-20-24 070424C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
