HGW HYDRAULICS

2605-32-32-32-FG

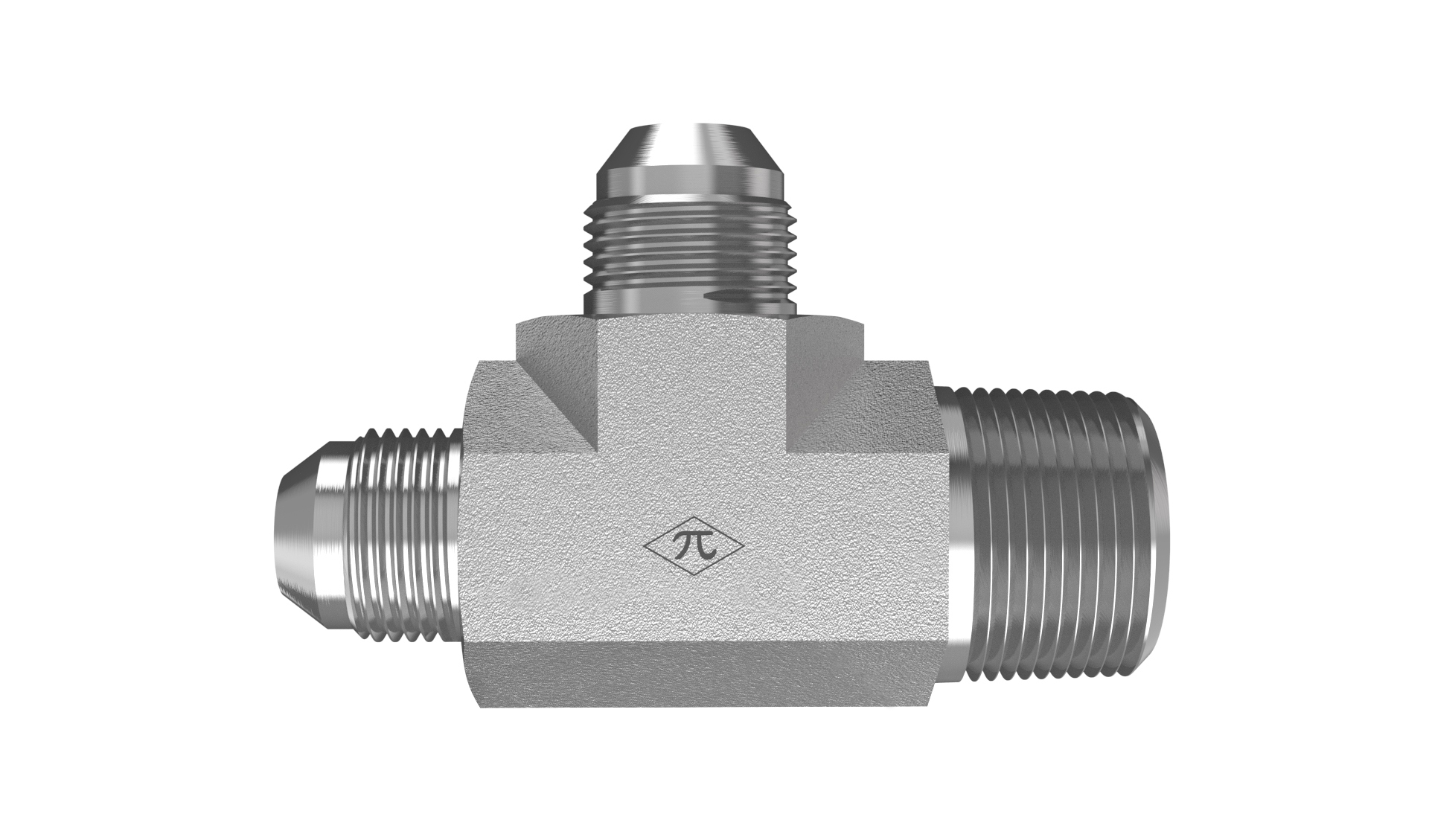

2" Male JIC x 2" Male NPTF 30° x 2" Male JIC

2605-32-32-32-FG is a 2" Male JIC x 2" Male NPTF 30° x 2" Male JIC in the 2605-FG Series. For connecting two 37° flared tubes or lines to pipe on the run without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Male Run Tee
$181.04
(0) Write a Review
SKU:
2605-32-32-32-FG

Product Details

Connection A
TypeMale JIC
Tube OD2"
StandardSAE J514 - Class 2A Thread
Thread Type2-1/2-12 UN
Connection B
TypeMale NPTF 30°
Pipe Size2"
StandardSAE J476
Thread Type2-1/2-12 UN
Connection C
TypeMale JIC
Tube OD2"
StandardSAE J514 - Class 2A Thread
Thread Type2-11-1/2 NPTF
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Run Tee
Weight4.65 lb
Cross References
Aeroquip2028-32-32S
Parker32 RTX-S
SAE Ref.SAE J514 32-32-32 070424C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
