HGW HYDRAULICS

2606-05-02-05

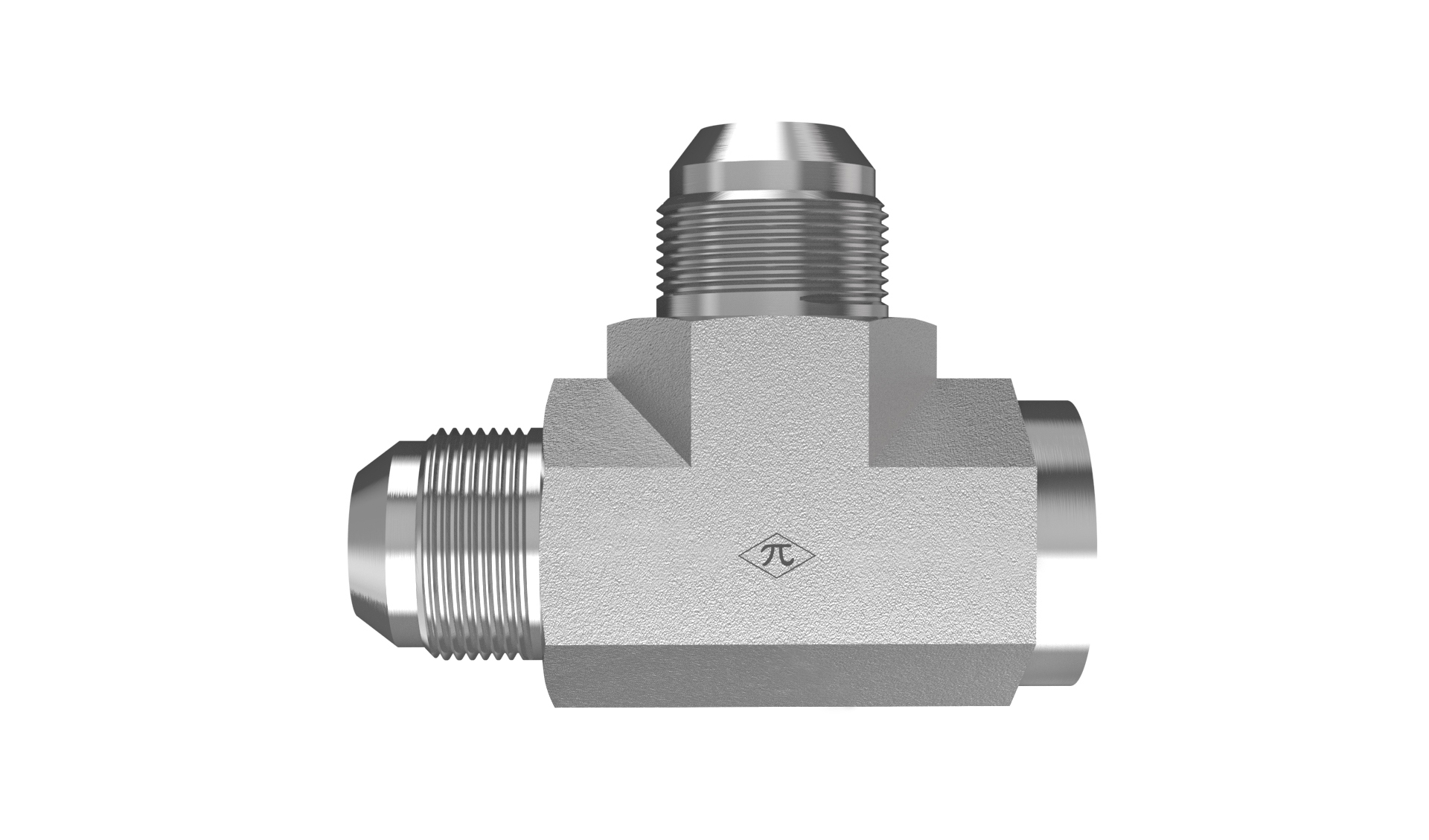

5/16" Male JIC 37° Flare × 1/8" Female NPTF × 5/16" Male JIC 37° Flare · Run Tee

The HGW 2606-05-02-05-FG is a run tee combining 5/16" male JIC 37° flare, 1/8" female NPTF, and 5/16" male JIC 37° flare. Made from trivalent-zinc-plated steel, it uses SAE J514 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Female Pipe Run Tee
$40.36
(0) Write a Review
SKU:
2606-05-02-05

Product Details

Connection A
TypeMale JIC 37° Flare
Tube Size5/16"
StandardSAE J514 · Class 2A Thread
Thread1/2-20
Connection B
TypeFemale NPTF
Pipe Size1/8"
StandardSAE J476
Thread1/8-27
Connection C
TypeMale JIC 37° Flare
Tube Size5/16"
StandardSAE J514 · Class 2A Thread
Thread1/2-20
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeFemale Pipe Run Tee
Weight0.16 lb
Cross References
Aeroquip2029-2-5S
Parker5 MTX-S
SAE Ref.SAE J514 5-2-5 070426C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
