HGW HYDRAULICS

2607-04-02-02-FG

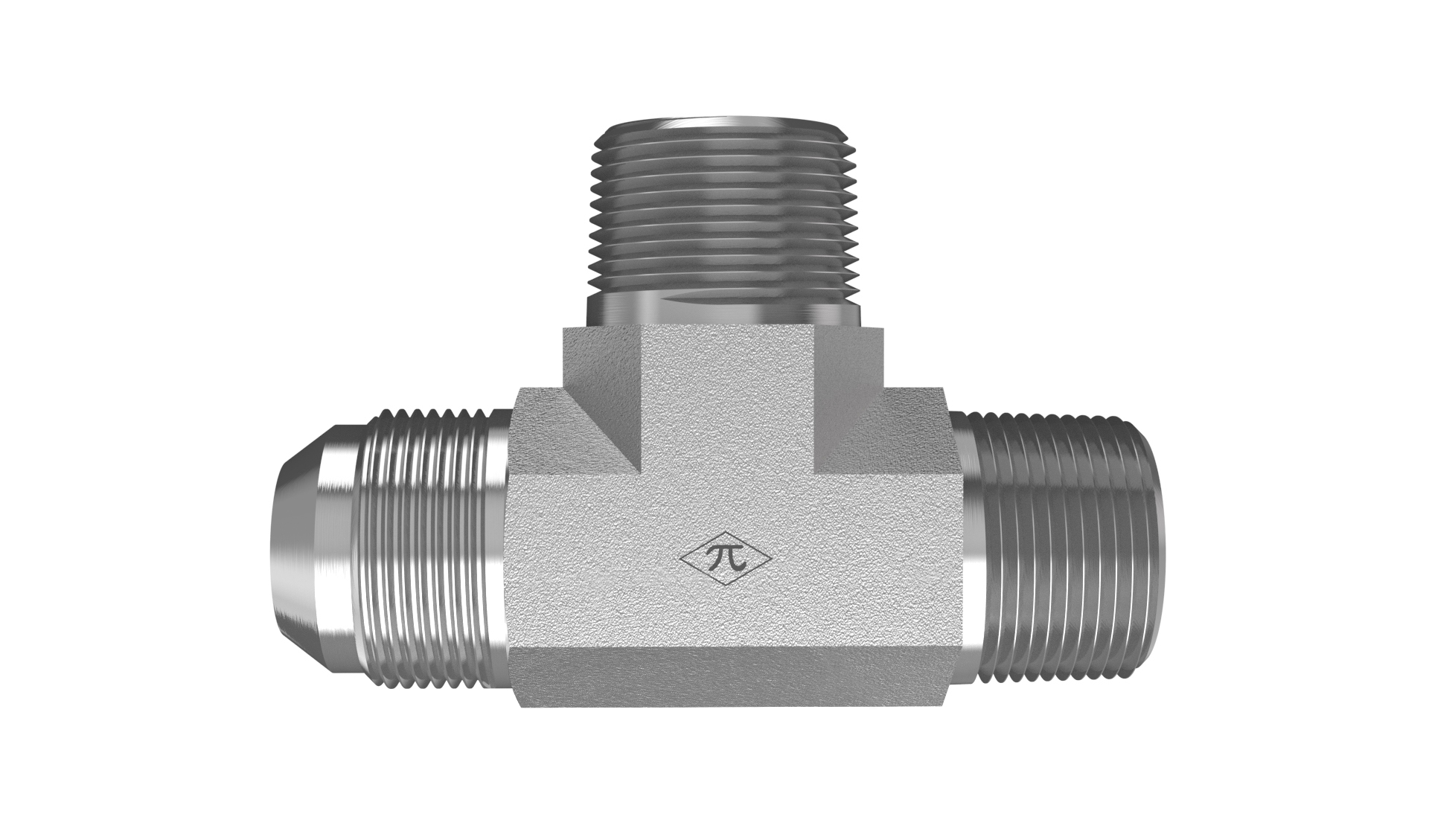

1/4" Male JIC x 1/8" Male NPTF 30° x 1/8" Male NPTF 30°

2607-04-02-02-FG is a 1/4" Male JIC x 1/8" Male NPTF 30° x 1/8" Male NPTF 30° in the 2607-FG Series. For connecting 37° flared tubes or lines to two pipes on the branch and run without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Male Run Tee
$3.39
(0) Write a Review
SKU:
2607-04-02-02-FG

Product Details

Connection A
TypeMale JIC
Tube OD1/4"
StandardSAE J514 - Class 2A Thread
Thread Type7/16-20 UNF
Connection B
TypeMale NPTF 30°
Pipe Size1/8"
StandardSAE J476
Thread Type7/16-20 UNF
Connection C
TypeMale NPTF 30°
Pipe Size1/8"
StandardSAE J476
Thread Type1/8-27 NPTF
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Run Tee
Weight0.07 lb
Cross References
Aeroquip203007-2-4S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
