HGW HYDRAULICS

2608-04-02-02-FG

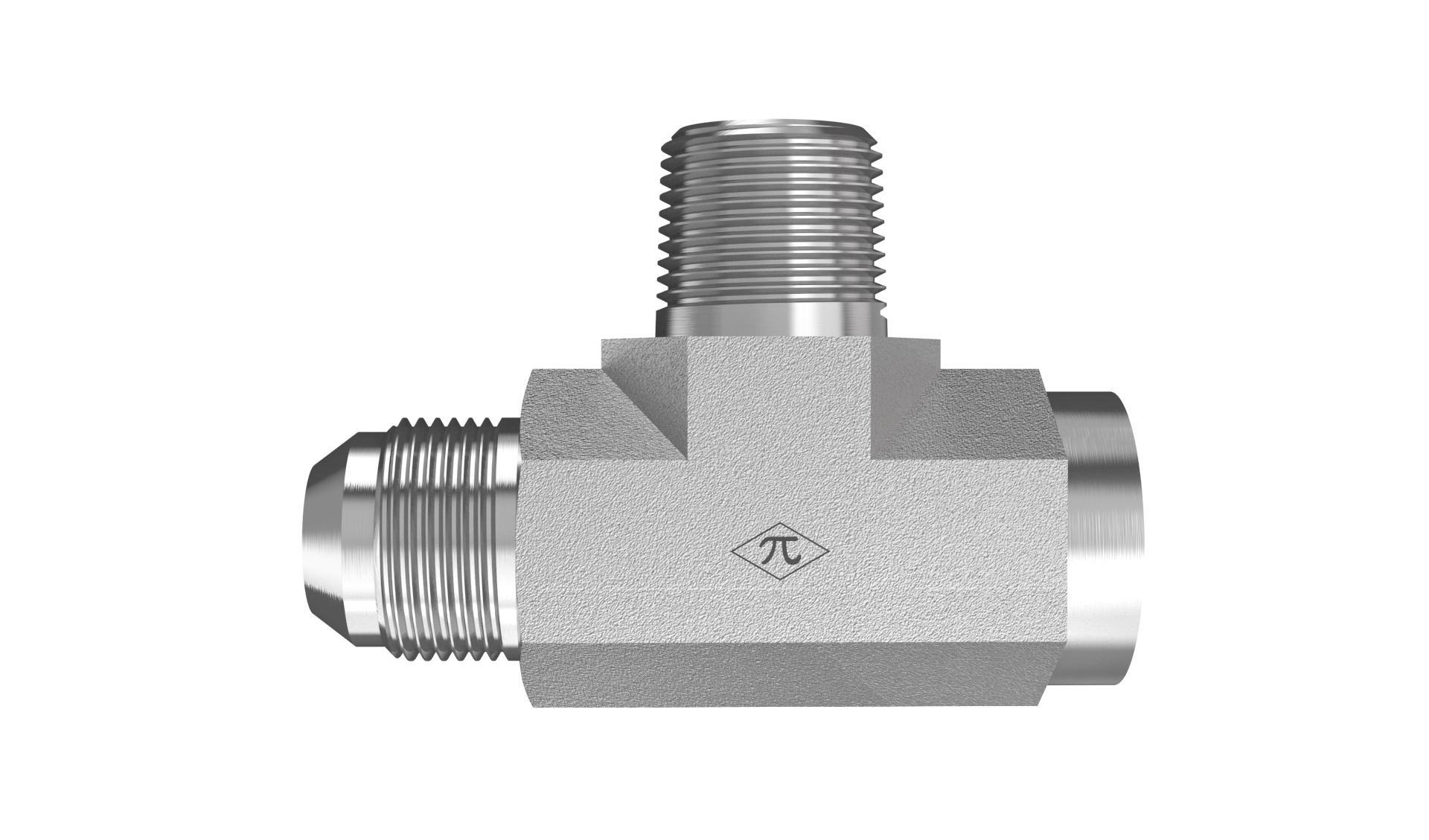

1/4" Male JIC x 1/8" Female NPTF x 1/8" Male NPTF

2608-04-02-02-FG is a 1/4" Male JIC x 1/8" Female NPTF x 1/8" Male NPTF in the 2608-FG Series. For connecting 37° flared tubes or lines to two pipes on the branch and run without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Female Run Tee
$16.37
(0) Write a Review
SKU:
2608-04-02-02-FG

Product Details

Connection A
TypeMale JIC
Tube OD1/4"
StandardSAE J514 - Class 2A Thread
Thread Type7/16-20 UNF
Connection B
TypeFemale NPTF
Pipe Size1/8"
StandardSAE J476
Thread Type7/16-20 UNF
Connection C
TypeMale NPTF
Pipe Size1/8"
StandardSAE J476
Thread Type1/8-27 NPTF
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeFemale Run Tee
Weight0.40 lb
Cross References
Aeroquip203006-2-4S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
