HGW HYDRAULICS

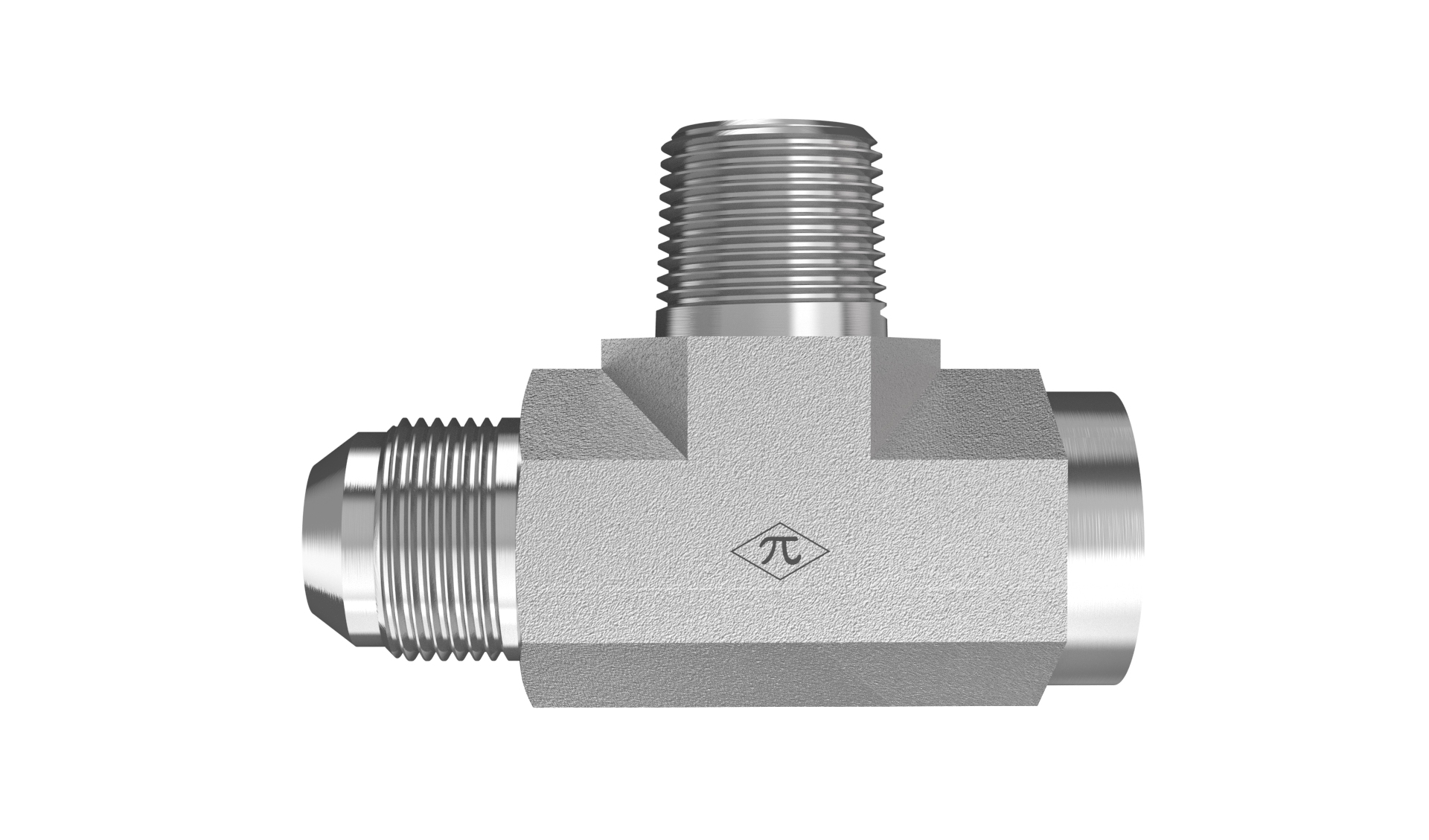

2608-06-06-06-SS

3/8" Male JIC x 3/8" Female NPTF x 3/8" Male NPTF

2608-06-06-06-SS is a 3/8" Male JIC x 3/8" Female NPTF x 3/8" Male NPTF in the 2608-FG Series. For connecting 37° flared tubes or lines to two pipes on the branch and run without requiring pipe sealant.

  • Stainless Steel
  • Passivated
  • Female Run Tee
$222.52
(0) Write a Review
SKU:
2608-06-06-06-SS

Product Details

Connection A
TypeMale JIC
Tube OD3/8"
StandardSAE J514 - Class 2A Thread
Thread Type9/16-18 UNF
Connection B
TypeFemale NPTF
Pipe Size3/8"
StandardSAE J476
Thread Type9/16-18 UNF
Connection C
TypeMale NPTF
Pipe Size3/8"
StandardSAE J476
Thread Type3/8-18 NPTF
Connection D
Specifications
MaterialStainless Steel
PlatingPassivated
ShapeFemale Run Tee
Weight0.36 lb
Cross References
Aeroquip259-203006-6-6

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
