HGW HYDRAULICS

2608-08-06-06-FG

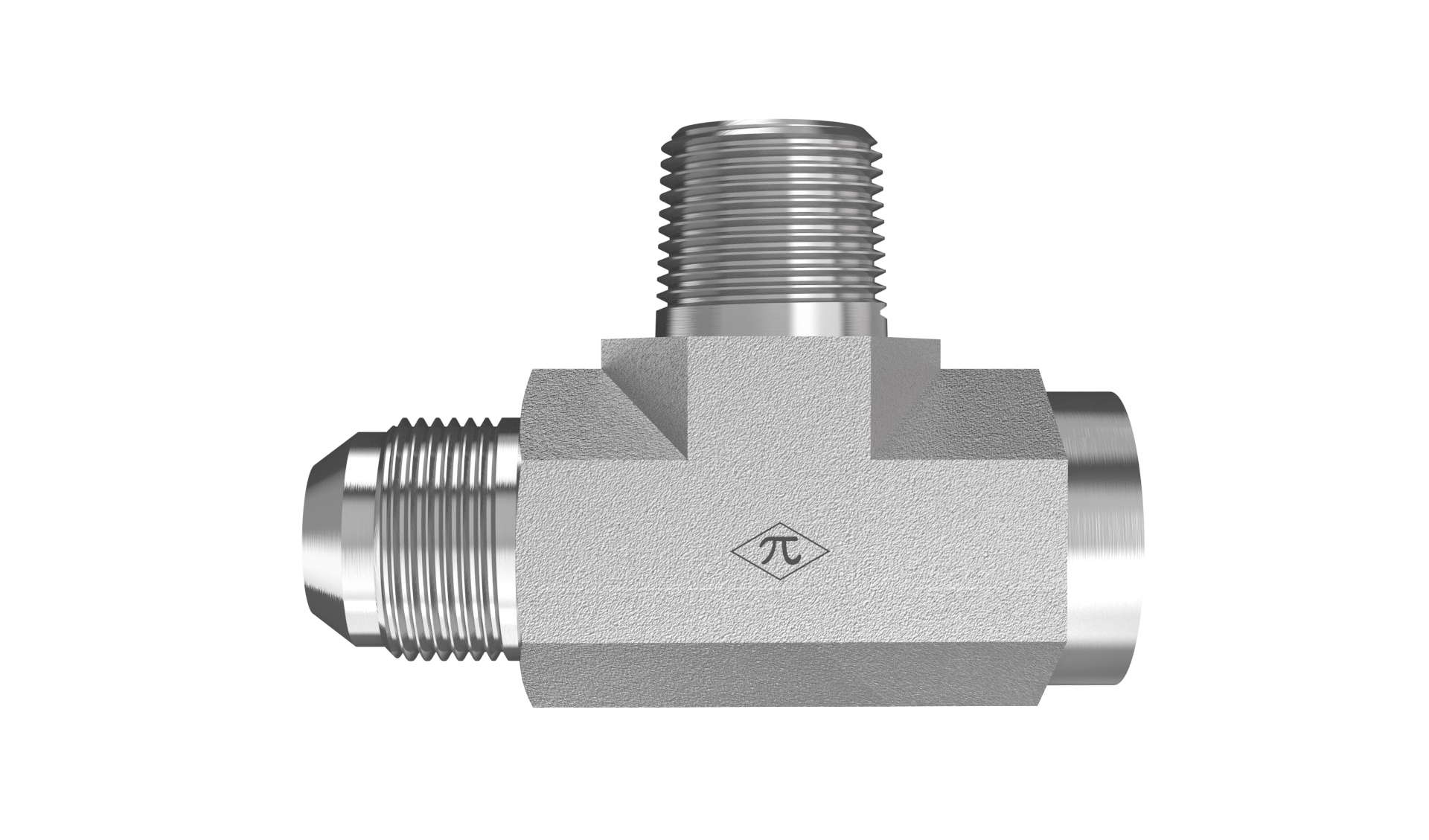

1/2" Male JIC x 3/8" Female NPTF x 3/8" Male NPTF

2608-08-06-06-FG is a 1/2" Male JIC x 3/8" Female NPTF x 3/8" Male NPTF in the 2608-FG Series. For connecting 37° flared tubes or lines to two pipes on the branch and run without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Female Run Tee
$32.83
(0) Write a Review
SKU:
2608-08-06-06-FG

Product Details

Connection A
TypeMale JIC
Tube OD1/2"
StandardSAE J514 - Class 2A Thread
Thread Type3/4-16 UNF
Connection B
TypeFemale NPTF
Pipe Size3/8"
StandardSAE J476
Thread Type3/4-16 UNF
Connection C
TypeMale NPTF
Pipe Size3/8"
StandardSAE J476
Thread Type3/8-18 NPTF
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeFemale Run Tee
Weight0.35 lb
Cross References
Aeroquip203006-6-8S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
