HGW HYDRAULICS

2609-05-04-04-FG

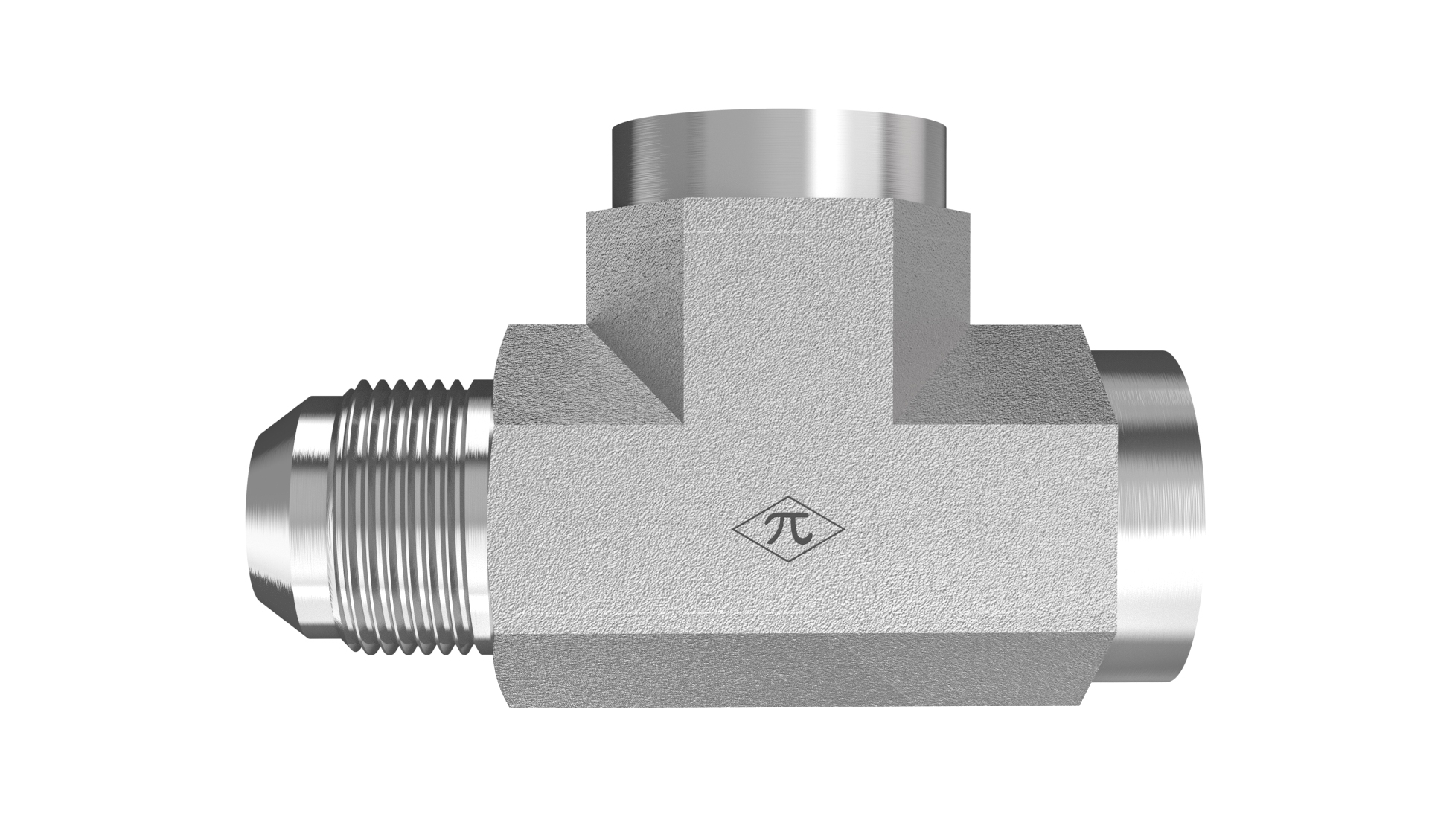

5/16" Male JIC x 1/4" Female NPTF x 1/4" Female NPTF

2609-05-04-04-FG is a 5/16" Male JIC x 1/4" Female NPTF x 1/4" Female NPTF in the 2609-FG Series. For connecting 37° flared tubes or lines to two pipes on the branch and run without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Female Run Tee
$23.47
(0) Write a Review
SKU:
2609-05-04-04-FG

Product Details

Connection A
TypeMale JIC
Tube OD5/16"
StandardSAE J514 - Class 2A Thread
Thread Type1/2-20 UNF
Connection B
TypeFemale NPTF
Pipe Size1/4"
StandardSAE J476
Thread Type1/2-20 UNF
Connection C
TypeFemale NPTF
Pipe Size1/4"
StandardSAE J476
Thread Type1/4-18 NPTF
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeFemale Run Tee
Weight0.22 lb
Cross References
Aeroquip203104-4-5S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
