HGW HYDRAULICS

2609-10-08-08-FG

5/8" Male JIC x 1/2" Female NPTF x 1/2" Female NPTF

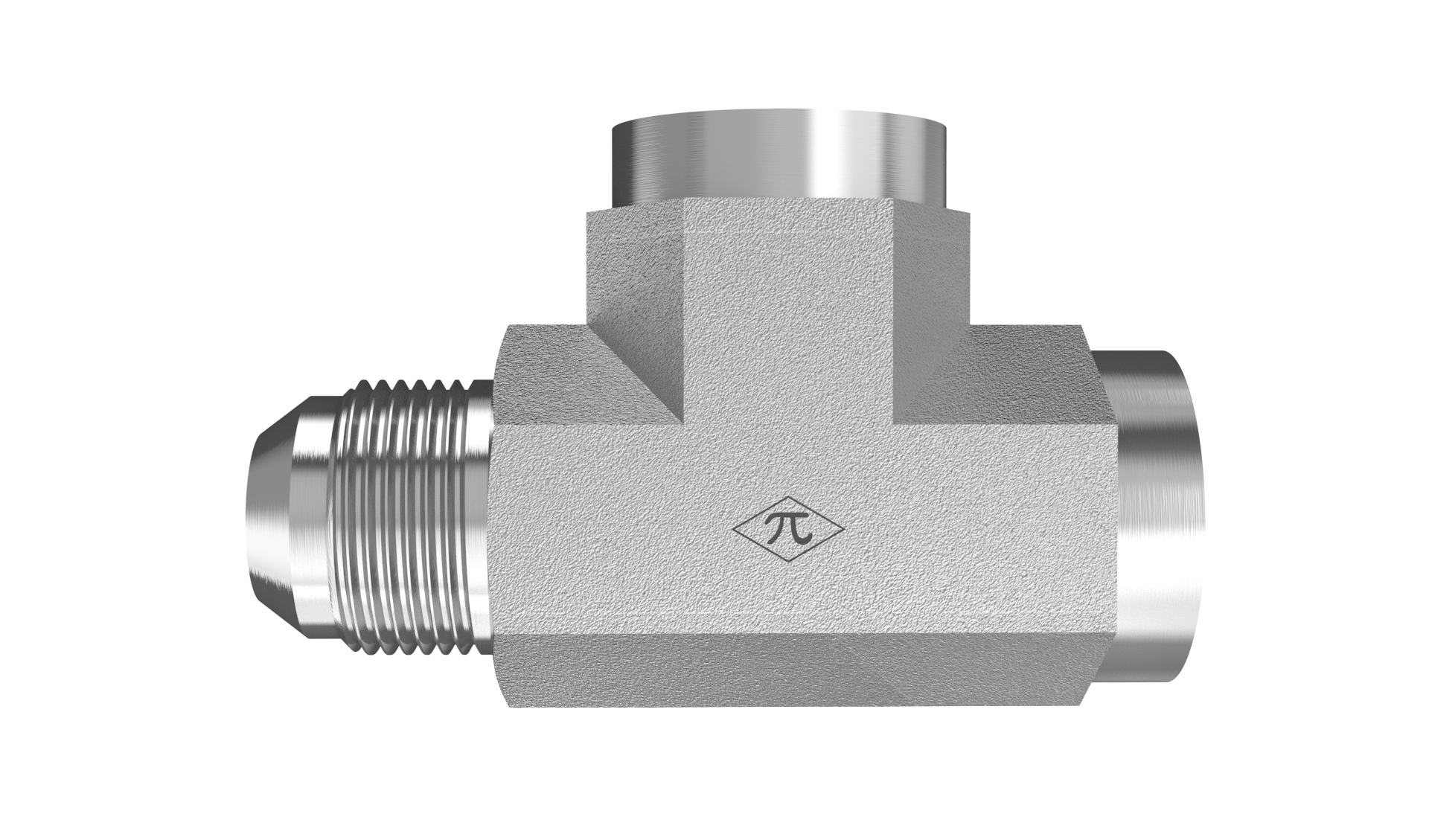

2609-10-08-08-FG is a 5/8" Male JIC x 1/2" Female NPTF x 1/2" Female NPTF in the 2609-FG Series. For connecting 37° flared tubes or lines to two pipes on the branch and run without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Female Run Tee
$51.31
(0) Write a Review
SKU:
2609-10-08-08-FG

Product Details

Connection A
TypeMale JIC
Tube OD5/8"
StandardSAE J514 - Class 2A Thread
Thread Type7/8-14 UNF
Connection B
TypeFemale NPTF
Pipe Size1/2"
StandardSAE J476
Thread Type7/8-14 UNF
Connection C
TypeFemale NPTF
Pipe Size1/2"
StandardSAE J476
Thread Type1/2-14 NPTF
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeFemale Run Tee
Weight0.49 lb
Cross References
Aeroquip203104-8-10S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
