HGW HYDRAULICS

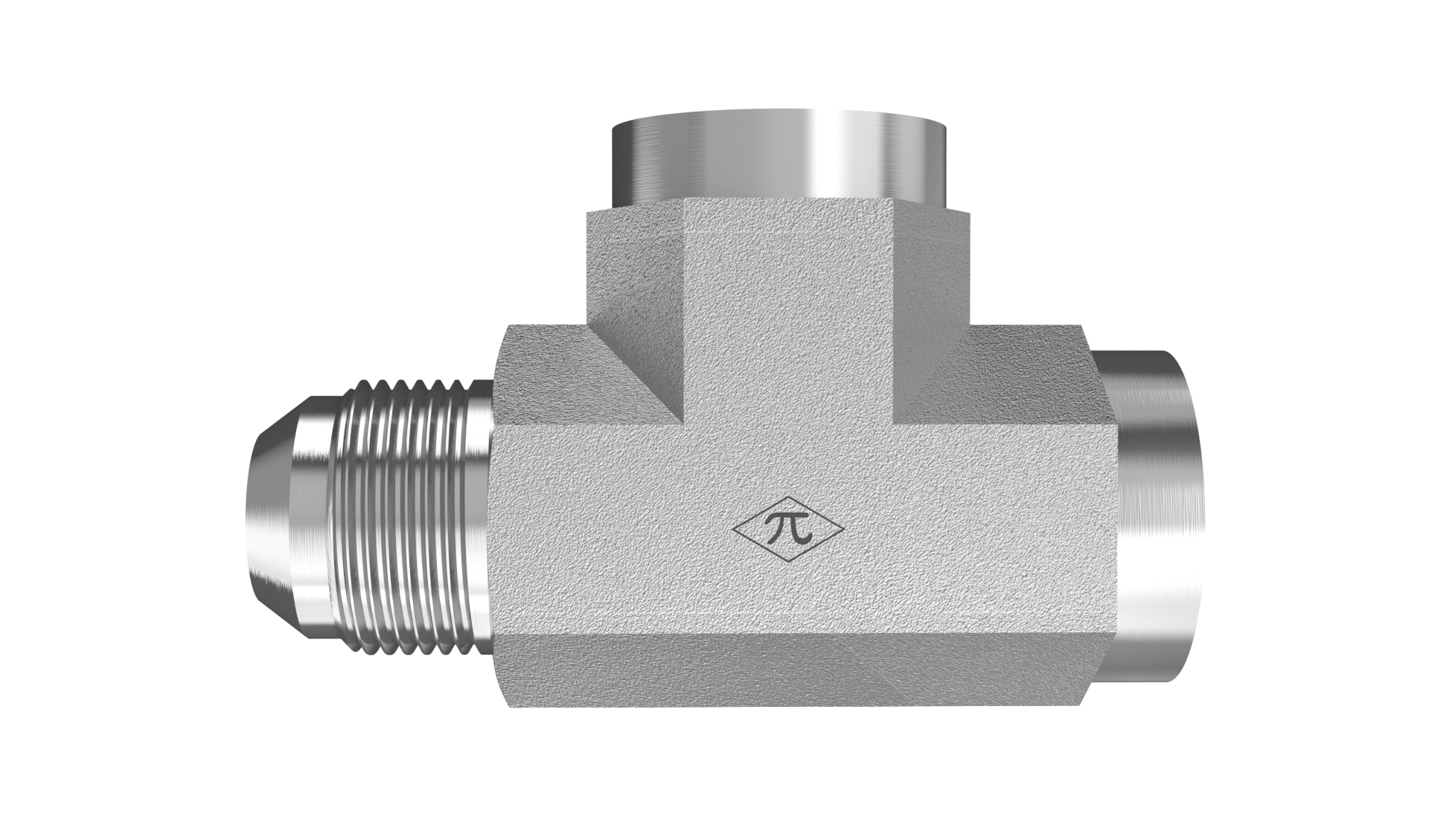

2609-32-32-32-FG

2" Male JIC x 2" Female NPTF x 2" Female NPTF

2609-32-32-32-FG is a 2" Male JIC x 2" Female NPTF x 2" Female NPTF in the 2609-FG Series. For connecting 37° flared tubes or lines to two pipes on the branch and run without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Female Run Tee
$737.75
(0) Write a Review
SKU:
2609-32-32-32-FG

Product Details

Connection A
TypeMale JIC
Tube OD2"
StandardSAE J514 - Class 2A Thread
Thread Type2-1/2-12 UN
Connection B
TypeFemale NPTF
Pipe Size2"
StandardSAE J476
Thread Type2-1/2-12 UN
Connection C
TypeFemale NPTF
Pipe Size2"
StandardSAE J476
Thread Type2-11-1/2 NPTF
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeFemale Run Tee
Weight5.00 lb
Cross References
Aeroquip203104-32-32S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
