HGW HYDRAULICS

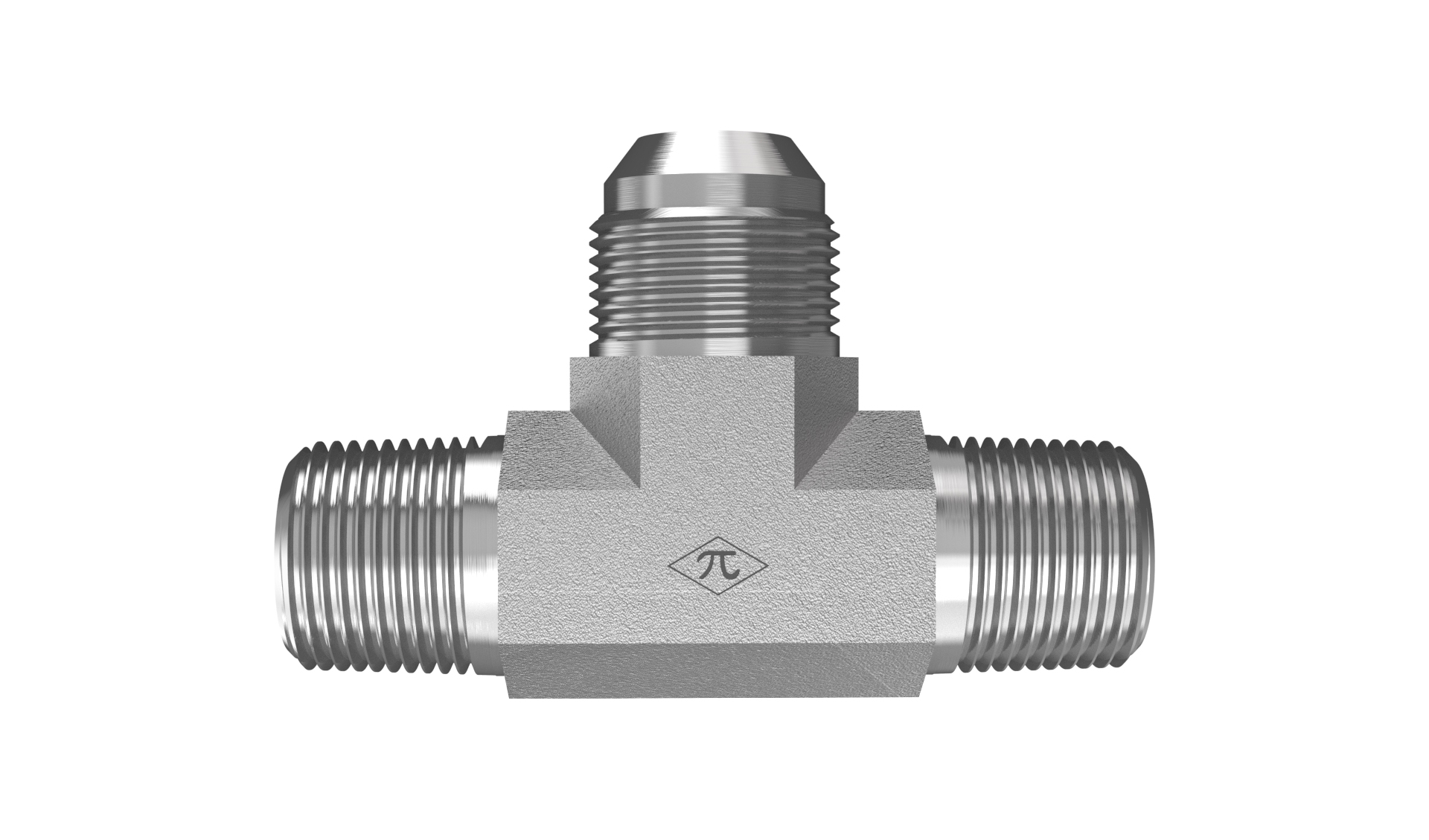

2610-08-08-10-FG

1/2" Male NPTF 30° x 1/2" Male NPTF 30° x 5/8" Male JIC

2610-08-08-10-FG is a 1/2" Male NPTF 30° x 1/2" Male NPTF 30° x 5/8" Male JIC in the 2610-FG Series. For branching 37° flared tubes or lines to two pipes without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Male Branch Tee
$17.80
(0) Write a Review
SKU:
2610-08-08-10-FG

Product Details

Connection A
TypeMale NPTF 30°
Pipe Size1/2"
StandardSAE J476
Thread Type1/2-14 NPTF
Connection B
TypeMale NPTF 30°
Pipe Size1/2"
StandardSAE J476
Thread Type1/2-14 NPTF
Connection C
TypeMale JIC
Tube OD5/8"
StandardSAE J514 - Class 2A Thread
Thread Type1/2-14 NPTF
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Branch Tee
Weight0.37 lb
Cross References
Aeroquip202832-8-10S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
