HGW HYDRAULICS

2611-04-04-02-SS

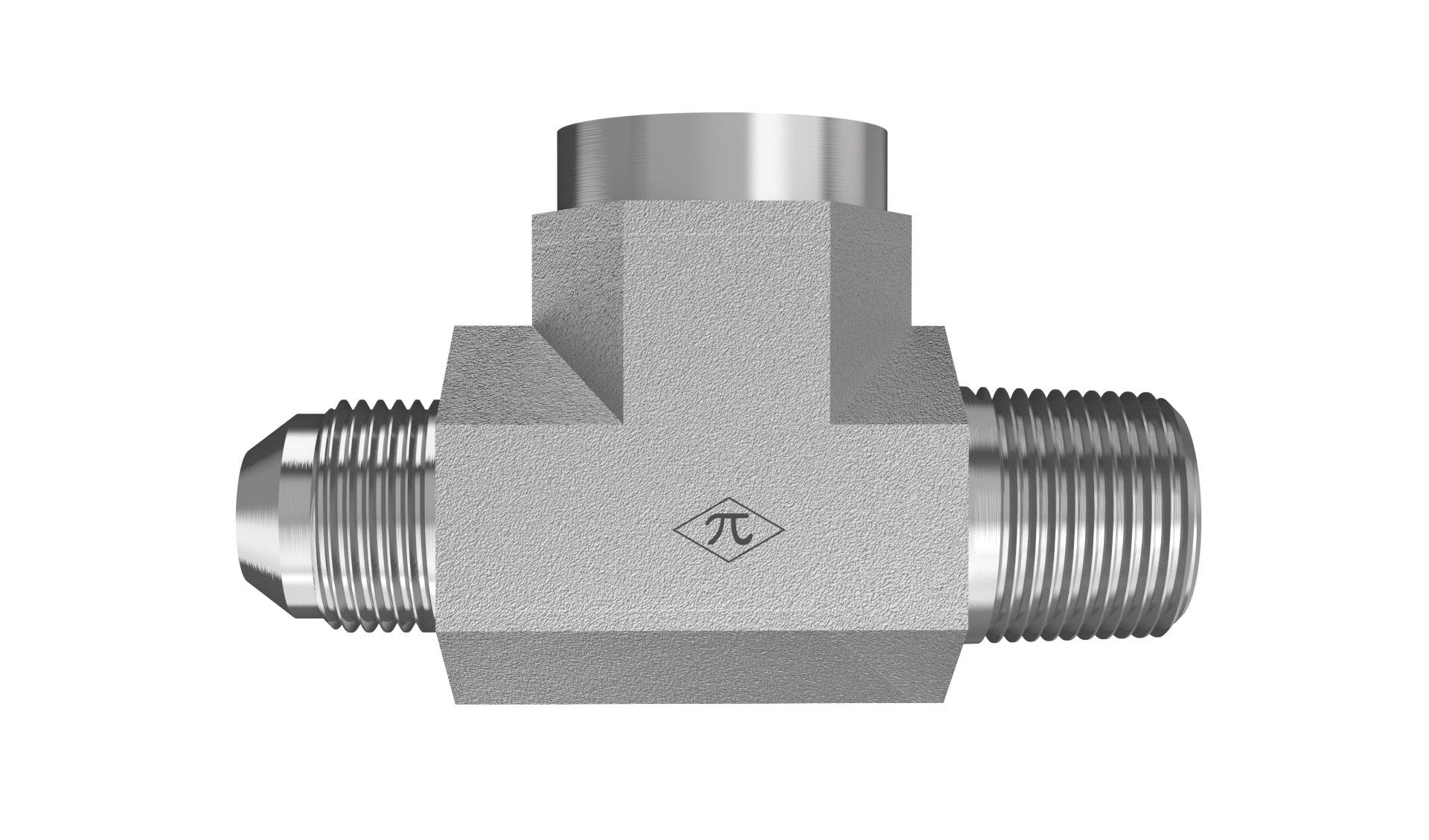

1/4" Male JIC x 1/4" Male NPTF 30° x 1/8" Female NPTF

2611-04-04-02-SS is a 1/4" Male JIC x 1/4" Male NPTF 30° x 1/8" Female NPTF in the 2611-FG Series. For connecting 37° flared tubes or lines to two pipes on the branch and run without requiring pipe sealant.

  • Stainless Steel
  • Passivated
  • Male Run Tee
$283.05
(0) Write a Review
SKU:
2611-04-04-02-SS

Product Details

Connection A
TypeMale JIC
Tube OD1/4"
StandardSAE J514 - Class 2A Thread
Thread Type7/16-20 UNF
Connection B
TypeMale NPTF 30°
Pipe Size1/4"
StandardSAE J476
Thread Type7/16-20 UNF
Connection C
TypeFemale NPTF
Pipe Size1/8"
StandardSAE J476
Thread Type1/4-18 NPTF
Connection D
Specifications
MaterialStainless Steel
PlatingPassivated
ShapeMale Run Tee
Weight0.28 lb
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
