HGW HYDRAULICS

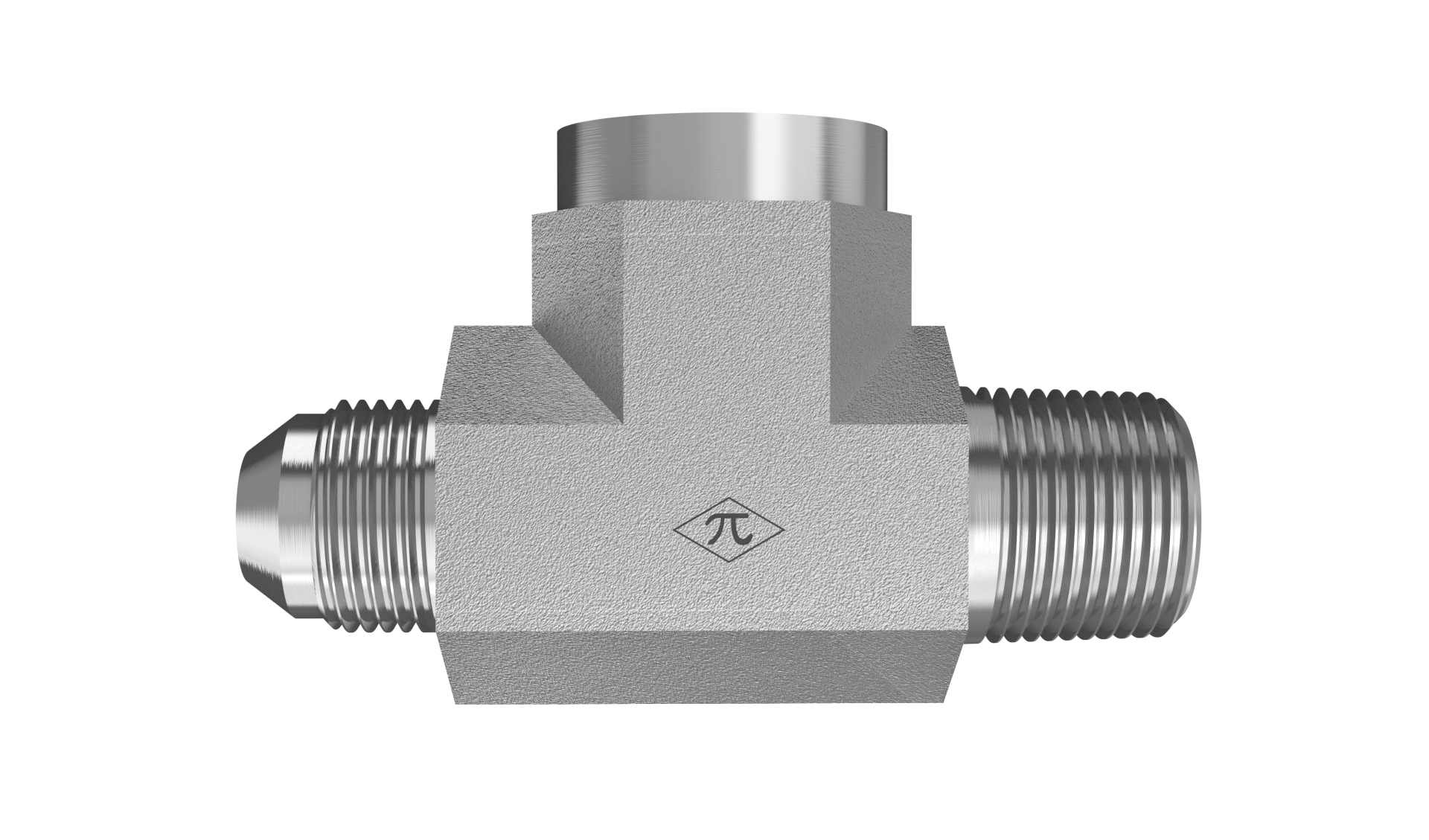

2611-08-08-08-FG

1/2" Male JIC x 1/2" Male NPTF 30° x 1/2" Female NPTF

2611-08-08-08-FG is a 1/2" Male JIC x 1/2" Male NPTF 30° x 1/2" Female NPTF in the 2611-FG Series. For connecting 37° flared tubes or lines to two pipes on the branch and run without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Male Run Tee
$21.23
(0) Write a Review
SKU:
2611-08-08-08-FG

Product Details

Connection A
TypeMale JIC
Tube OD1/2"
StandardSAE J514 - Class 2A Thread
Thread Type3/4-16 UNF
Connection B
TypeMale NPTF 30°
Pipe Size1/2"
StandardSAE J476
Thread Type3/4-16 UNF
Connection C
TypeFemale NPTF
Pipe Size1/2"
StandardSAE J476
Thread Type1/2-14 NPTF
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Run Tee
Weight0.48 lb
Cross References
Aeroquip203103-8-8S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
