HGW HYDRAULICS

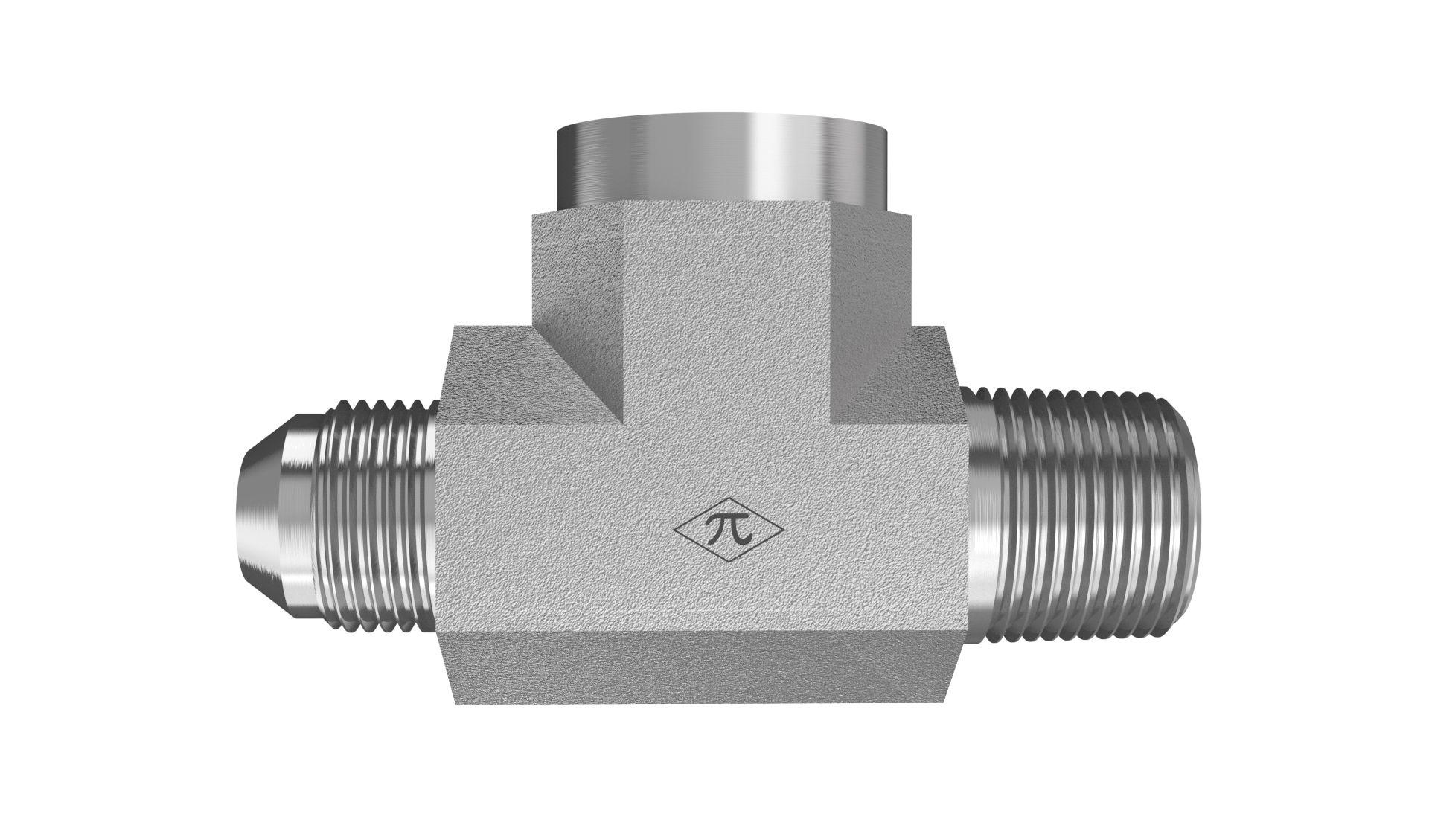

2611-16-16-16-FG

1" Male JIC x 1" Male NPTF 30° x 1" Female NPTF

2611-16-16-16-FG is a 1" Male JIC x 1" Male NPTF 30° x 1" Female NPTF in the 2611-FG Series. For connecting 37° flared tubes or lines to two pipes on the branch and run without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Male Run Tee
$43.07
(0) Write a Review
SKU:
2611-16-16-16-FG

Product Details

Connection A
TypeMale JIC
Tube OD1"
StandardSAE J514 - Class 2A Thread
Thread Type1-5/16-12 UN
Connection B
TypeMale NPTF 30°
Pipe Size1"
StandardSAE J476
Thread Type1-5/16-12 UN
Connection C
TypeFemale NPTF
Pipe Size1"
StandardSAE J476
Thread Type1-11-1/2 NPTF
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Run Tee
Weight1.45 lb
Cross References
Aeroquip203103-16-16S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
