HGW HYDRAULICS

2612-02-02-04-FG

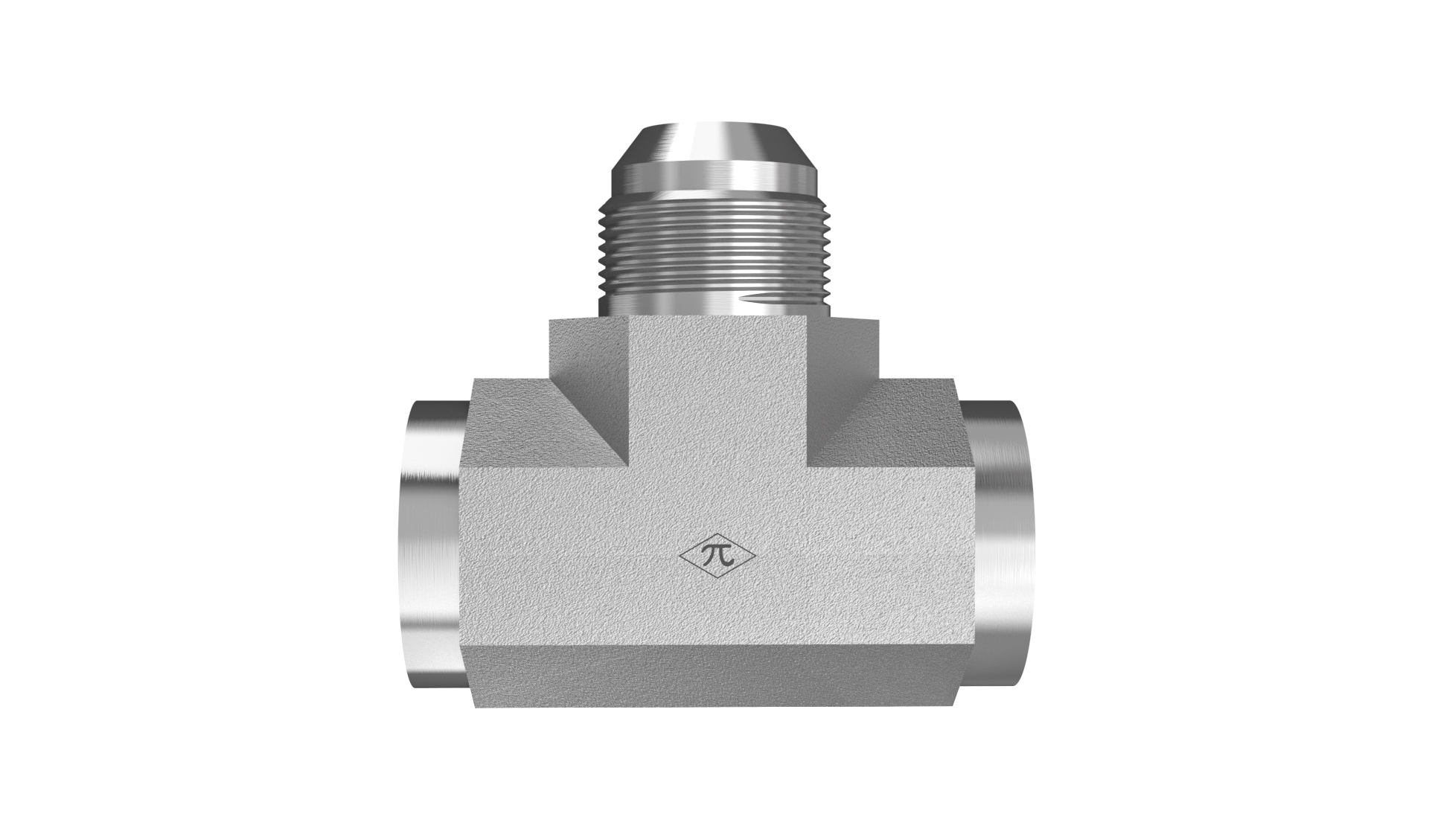

1/8" Female NPTF x 1/8" Female NPTF x 1/4" Male JIC

2612-02-02-04-FG is a 1/8" Female NPTF x 1/8" Female NPTF x 1/4" Male JIC in the 2612-FG Series. For branching 37° flared tubes or lines to two pipes without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Female Branch Tee
$24.36
(0) Write a Review
SKU:
2612-02-02-04-FG

Product Details

Connection A
TypeFemale NPTF
Pipe Size1/8"
StandardSAE J476
Thread Type1/8-27 NPTF
Connection B
TypeFemale NPTF
Pipe Size1/8"
StandardSAE J476
Thread Type1/8-27 NPTF
Connection C
TypeMale JIC
Tube OD1/4"
StandardSAE J514 - Class 2A Thread
Thread Type1/8-27 NPTF
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeFemale Branch Tee
Weight0.09 lb
Cross References
Aeroquip202901-2-4S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
