HGW HYDRAULICS

2612-04-04-06-FG

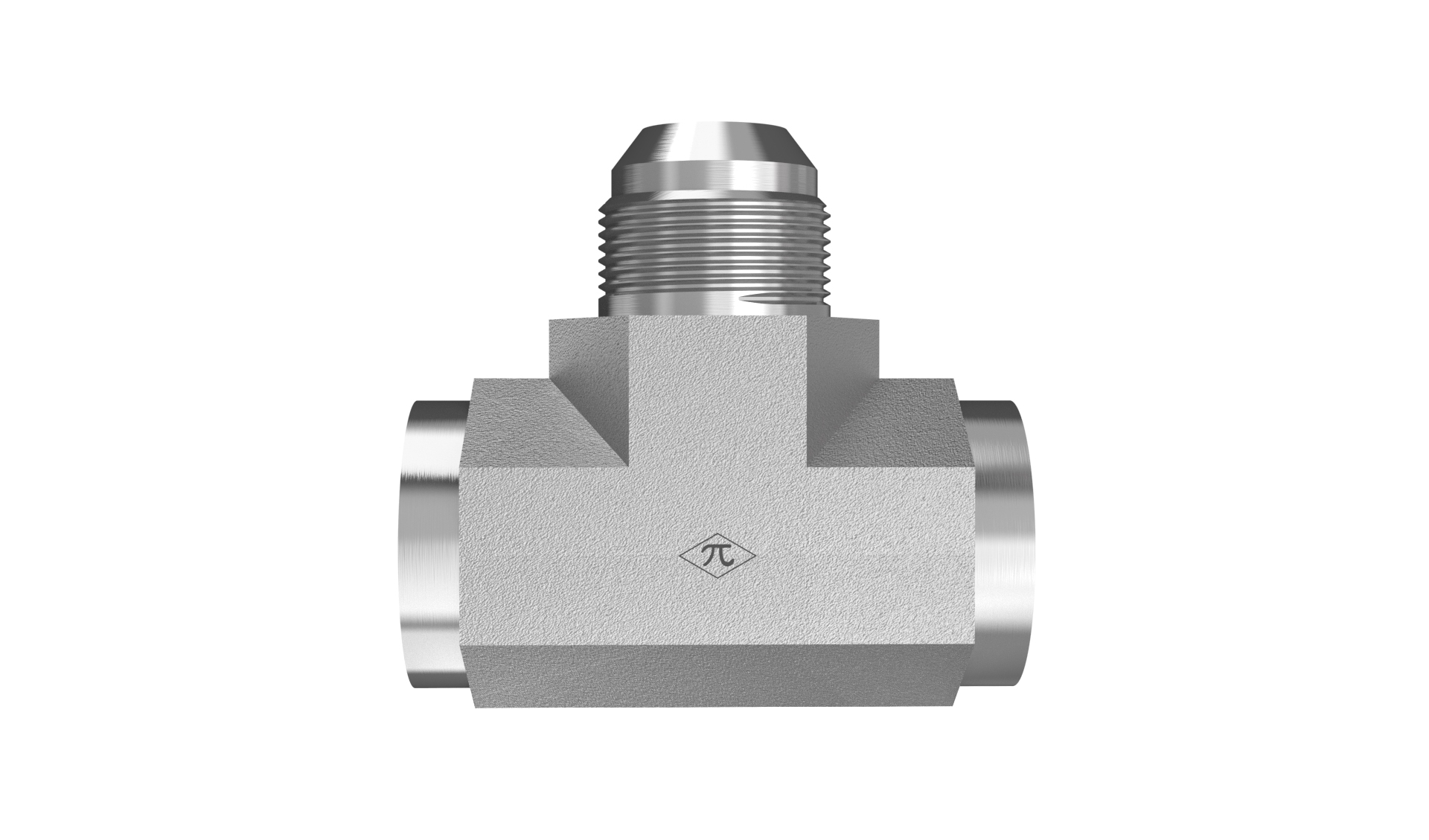

1/4" Female NPTF x 1/4" Female NPTF x 3/8" Male JIC

2612-04-04-06-FG is a 1/4" Female NPTF x 1/4" Female NPTF x 3/8" Male JIC in the 2612-FG Series. For branching 37° flared tubes or lines to two pipes without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Female Branch Tee
$31.97
(0) Write a Review
SKU:
2612-04-04-06-FG

Product Details

Connection A
TypeFemale NPTF
Pipe Size1/4"
StandardSAE J476
Thread Type1/4-18 NPTF
Connection B
TypeFemale NPTF
Pipe Size1/4"
StandardSAE J476
Thread Type1/4-18 NPTF
Connection C
TypeMale JIC
Tube OD3/8"
StandardSAE J514 - Class 2A Thread
Thread Type1/4-18 NPTF
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeFemale Branch Tee
Weight0.20 lb
Cross References
Aeroquip202901-4-6S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
