HGW HYDRAULICS

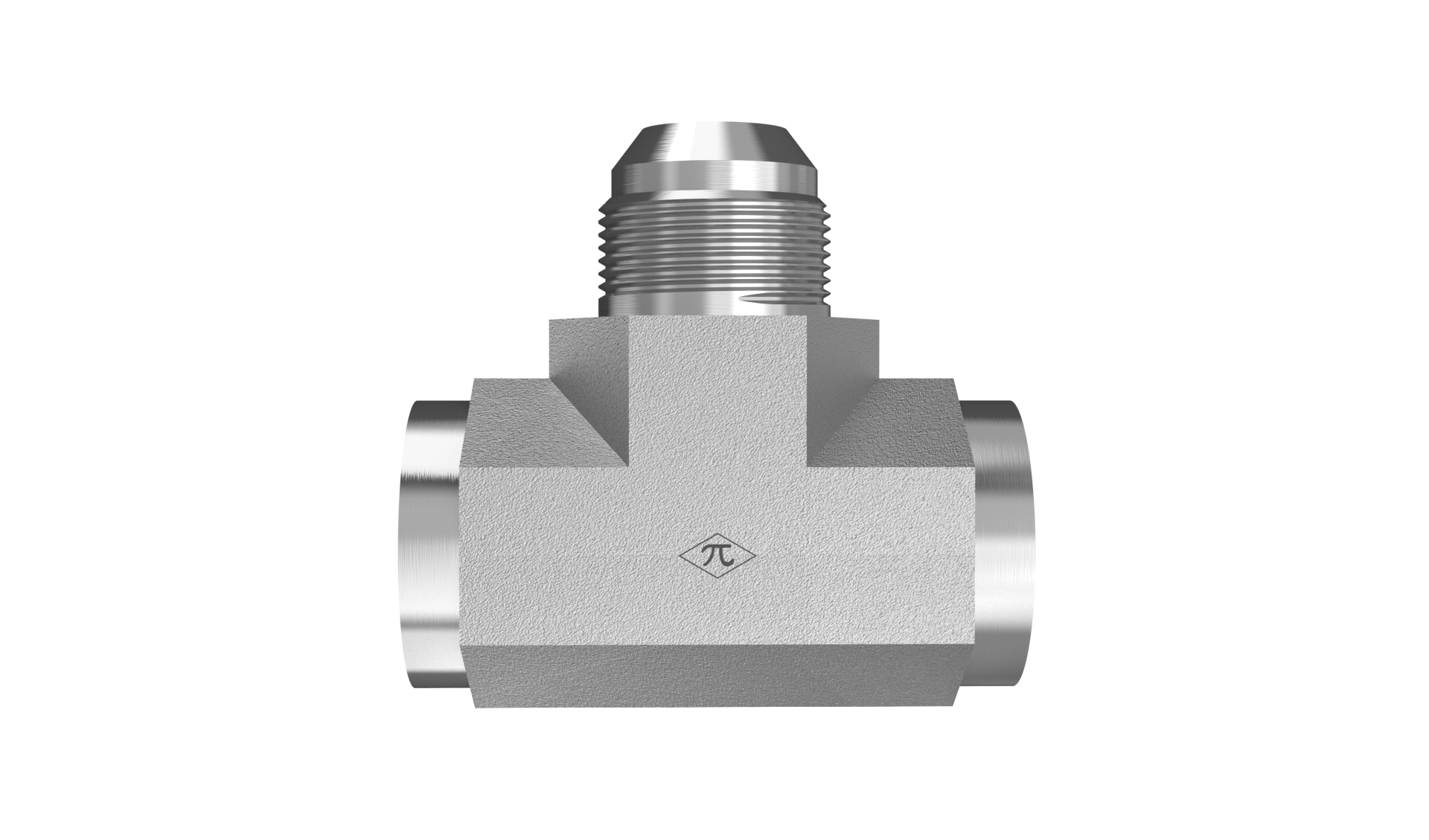

2612-06-06-08-FG

3/8" Female NPTF x 3/8" Female NPTF x 1/2" Male JIC

2612-06-06-08-FG is a 3/8" Female NPTF x 3/8" Female NPTF x 1/2" Male JIC in the 2612-FG Series. For branching 37° flared tubes or lines to two pipes without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Female Branch Tee
$39.02
(0) Write a Review
SKU:
2612-06-06-08-FG

Product Details

Connection A
TypeFemale NPTF
Pipe Size3/8"
StandardSAE J476
Thread Type3/8-18 NPTF
Connection B
TypeFemale NPTF
Pipe Size3/8"
StandardSAE J476
Thread Type3/8-18 NPTF
Connection C
TypeMale JIC
Tube OD1/2"
StandardSAE J514 - Class 2A Thread
Thread Type3/8-18 NPTF
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeFemale Branch Tee
Weight0.30 lb
Cross References
Aeroquip202901-6-8S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
