HGW HYDRAULICS

2612-12-12-12-SS

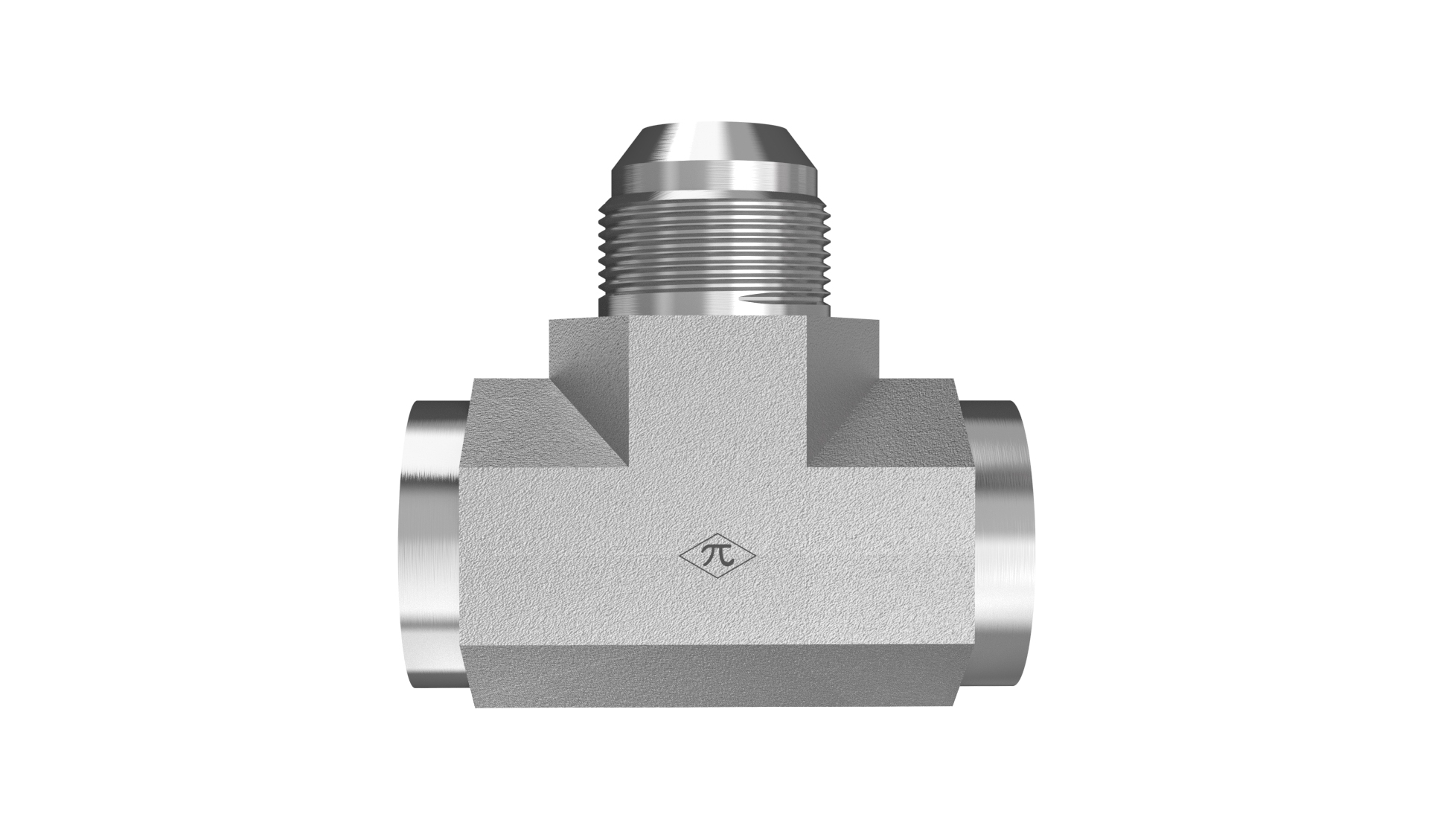

3/4" Female NPTF x 3/4" Female NPTF x 3/4" Male JIC

2612-12-12-12-SS is a 3/4" Female NPTF x 3/4" Female NPTF x 3/4" Male JIC in the 2612-FG Series. For branching 37° flared tubes or lines to two pipes without requiring pipe sealant.

  • Stainless Steel
  • Passivated
  • Female Branch Tee
$621.16
(0) Write a Review
SKU:
2612-12-12-12-SS

Product Details

Connection A
TypeFemale NPTF
Pipe Size3/4"
StandardSAE J476
Thread Type3/4-14 NPTF
Connection B
TypeFemale NPTF
Pipe Size3/4"
StandardSAE J476
Thread Type3/4-14 NPTF
Connection C
TypeMale JIC
Tube OD3/4"
StandardSAE J514 - Class 2A Thread
Thread Type3/4-14 NPTF
Connection D
Specifications
MaterialStainless Steel
PlatingPassivated
ShapeFemale Branch Tee
Weight0.84 lb
Cross References
Aeroquip259-202901-12-12

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
