HGW HYDRAULICS

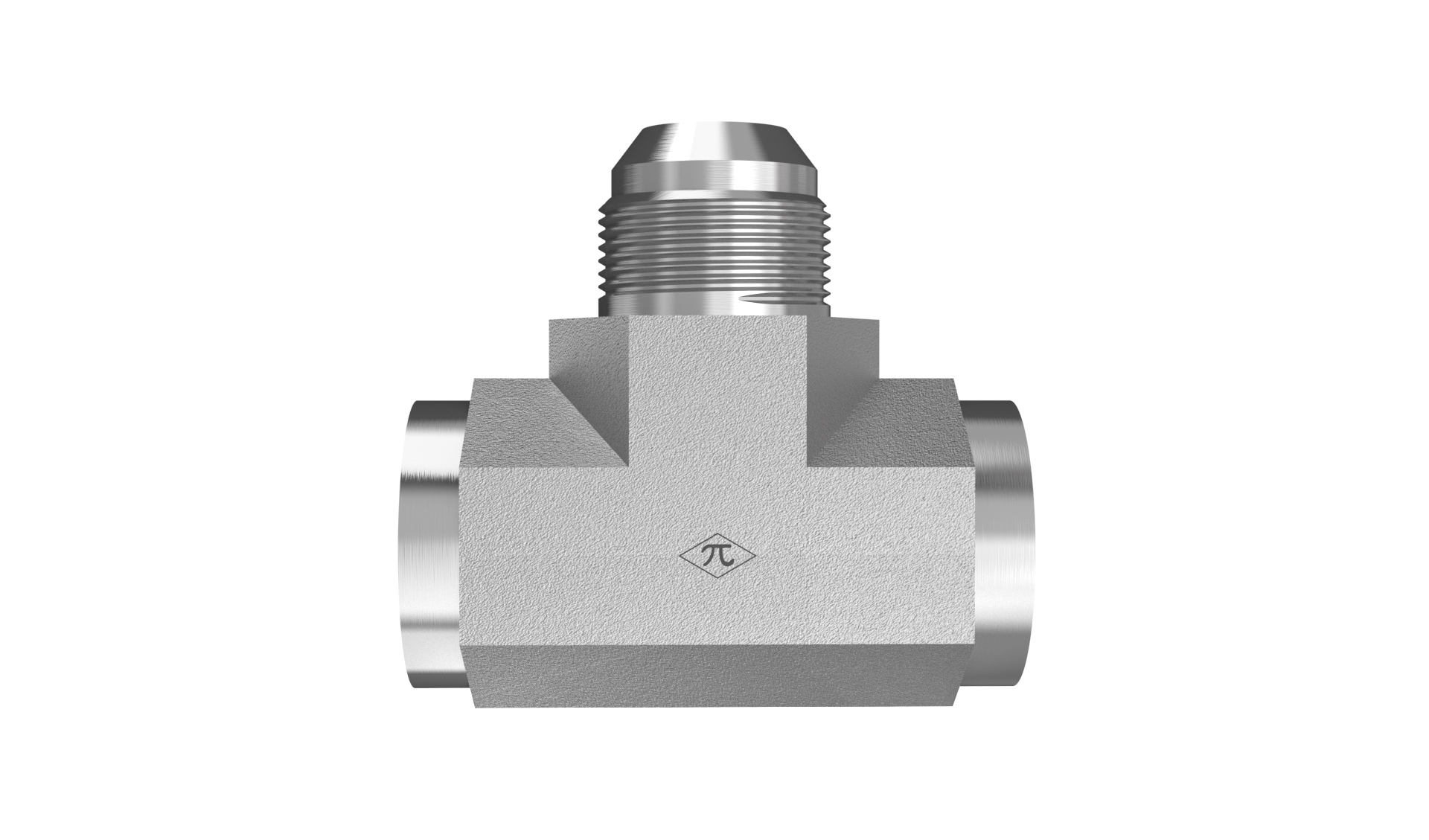

2612-32-32-32-FG

2" Female NPTF x 2" Female NPTF x 2" Male JIC

2612-32-32-32-FG is a 2" Female NPTF x 2" Female NPTF x 2" Male JIC in the 2612-FG Series. For branching 37° flared tubes or lines to two pipes without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Female Branch Tee
$737.75
(0) Write a Review
SKU:
2612-32-32-32-FG

Product Details

Connection A
TypeFemale NPTF
Pipe Size2"
StandardSAE J476
Thread Type2-11-1/2 NPTF
Connection B
TypeFemale NPTF
Pipe Size2"
StandardSAE J476
Thread Type2-11-1/2 NPTF
Connection C
TypeMale JIC
Tube OD2"
StandardSAE J514 - Class 2A Thread
Thread Type2-11-1/2 NPTF
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeFemale Branch Tee
Weight3.36 lb
Cross References
Aeroquip202901-32-32S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
