HGW HYDRAULICS

2613-02-02-04-FG

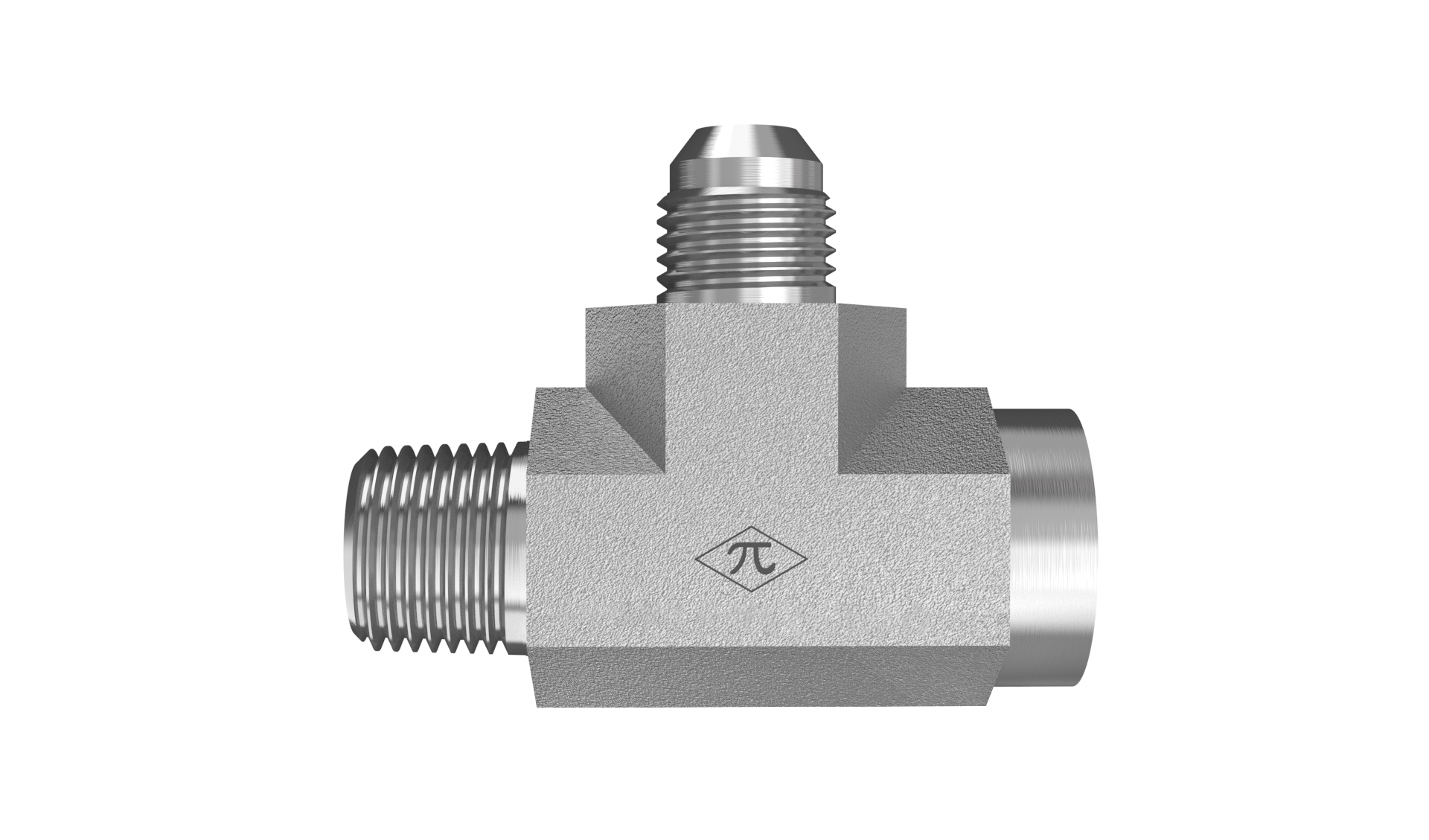

1/8" Male NPTF 30° x 1/8" Female NPTF x 1/4" Male JIC

2613-02-02-04-FG is a 1/8" Male NPTF 30° x 1/8" Female NPTF x 1/4" Male JIC in the 2613-FG Series. For branching 37° flared tubes or lines to two pipes without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Male Branch Tee
$18.78
(0) Write a Review

Product Details

Connection A
TypeMale NPTF 30°
Pipe Size1/8"
StandardSAE J476
Thread Type1/8-27 NPTF
Connection B
TypeFemale NPTF
Pipe Size1/8"
StandardSAE J476
Thread Type1/8-27 NPTF
Connection C
TypeMale JIC
Tube OD1/4"
StandardSAE J514 - Class 2A Thread
Thread Type1/8-27 NPTF
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Branch Tee
Weight0.10 lb
Cross References
Aeroquip203301-2-4S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
