HGW HYDRAULICS

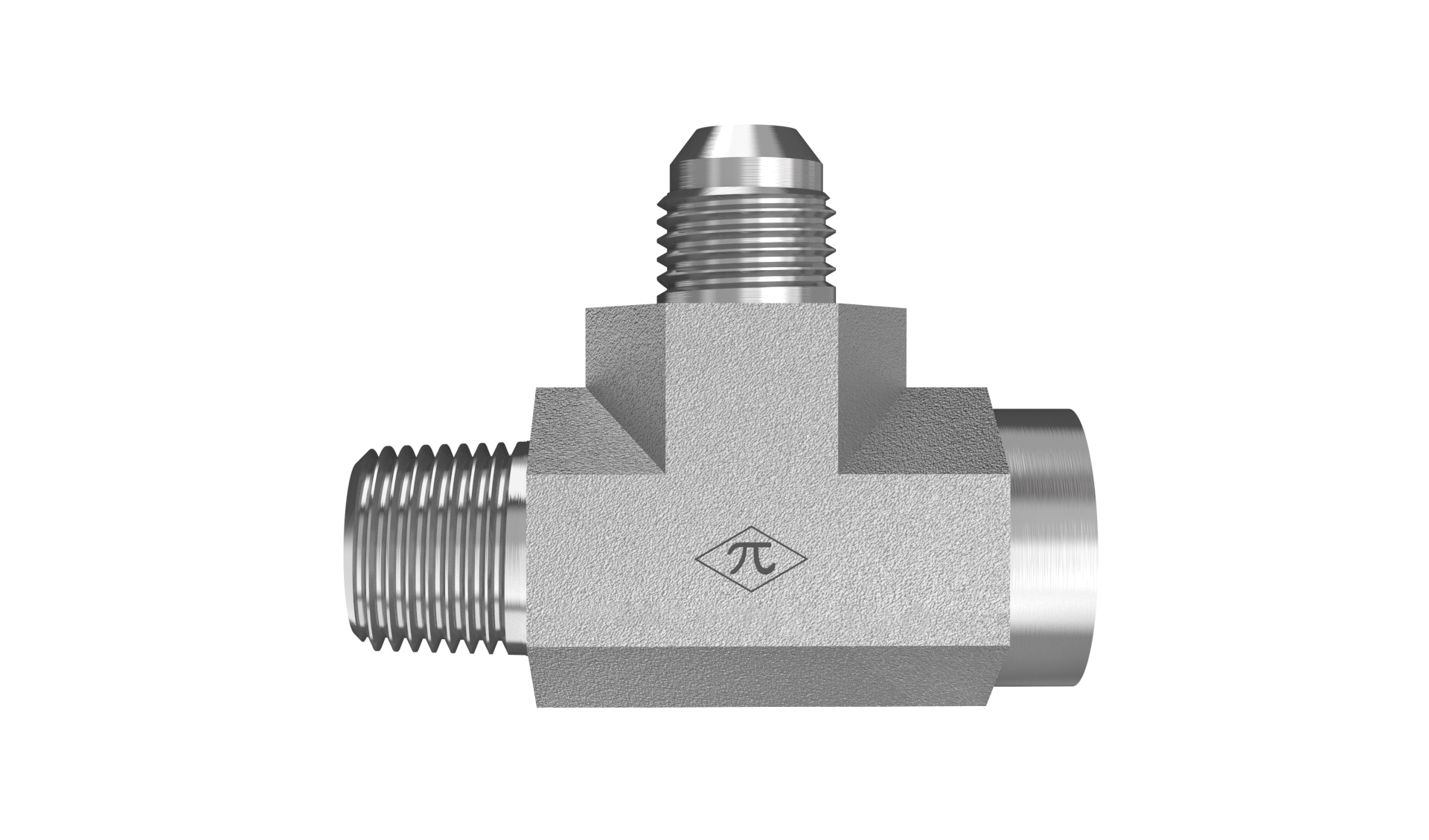

2613-06-06-06-SS

3/8" Male NPTF 30° x 3/8" Female NPTF x 3/8" Male JIC

2613-06-06-06-SS is a 3/8" Male NPTF 30° x 3/8" Female NPTF x 3/8" Male JIC in the 2613-FG Series. For branching 37° flared tubes or lines to two pipes without requiring pipe sealant.

  • Stainless Steel
  • Passivated
  • Male Branch Tee
$275.38
(0) Write a Review

Product Details

Connection A
TypeMale NPTF 30°
Pipe Size3/8"
StandardSAE J476
Thread Type3/8-18 NPTF
Connection B
TypeFemale NPTF
Pipe Size3/8"
StandardSAE J476
Thread Type3/8-18 NPTF
Connection C
TypeMale JIC
Tube OD3/8"
StandardSAE J514 - Class 2A Thread
Thread Type3/8-18 NPTF
Connection D
Specifications
MaterialStainless Steel
PlatingPassivated
ShapeMale Branch Tee
Weight0.83 lb
Cross References
Aeroquip259-203301-6-6

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
