HGW HYDRAULICS

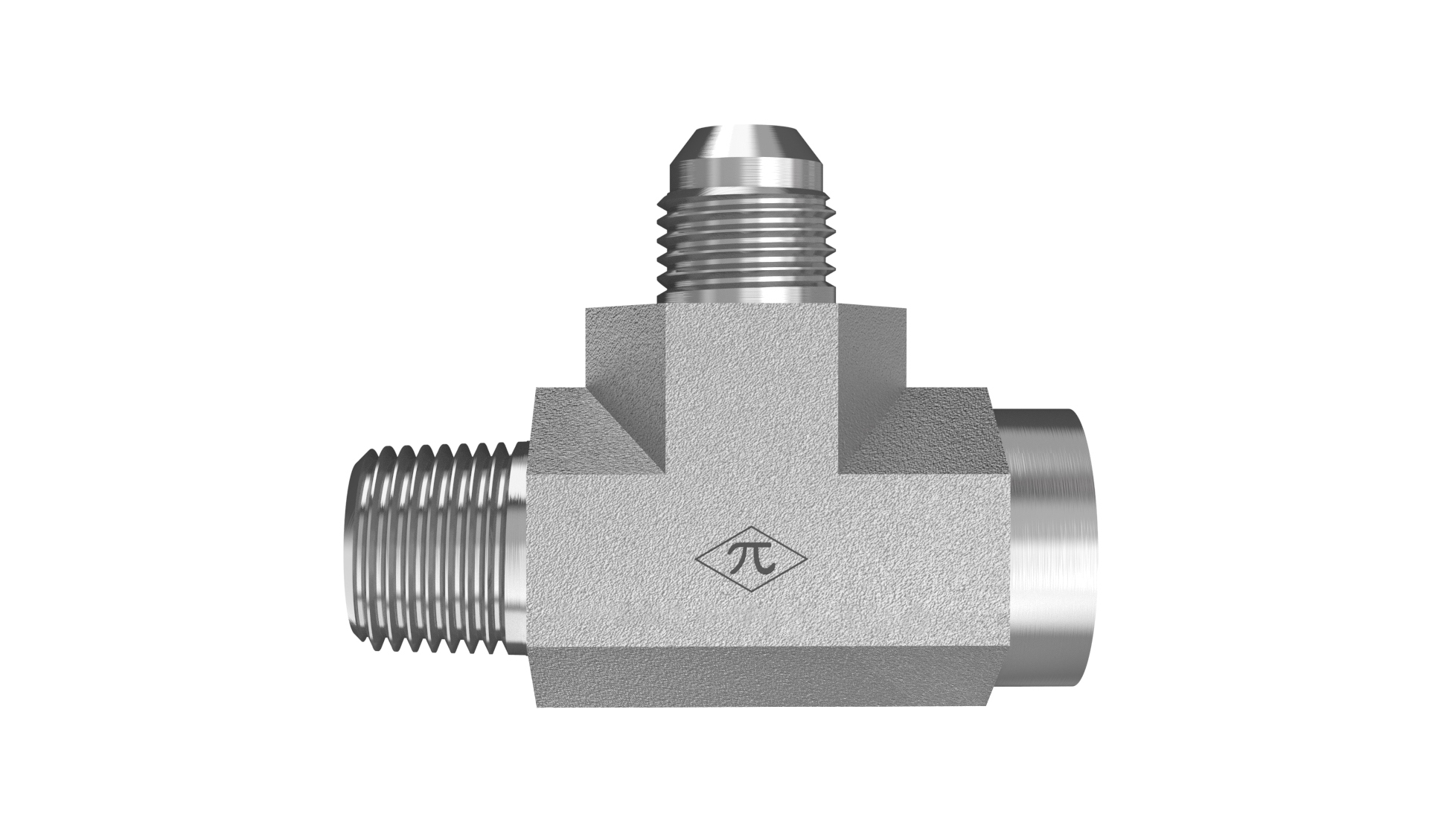

2613-16-16-16-FG

1" Male NPTF 30° x 1" Female NPTF x 1" Male JIC

2613-16-16-16-FG is a 1" Male NPTF 30° x 1" Female NPTF x 1" Male JIC in the 2613-FG Series. For branching 37° flared tubes or lines to two pipes without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Male Branch Tee
$45.68
(0) Write a Review
SKU:
2613-16-16-16-FG

Product Details

Connection A
TypeMale NPTF 30°
Pipe Size1"
StandardSAE J476
Thread Type1-11-1/2 NPTF
Connection B
TypeFemale NPTF
Pipe Size1"
StandardSAE J476
Thread Type1-11-1/2 NPTF
Connection C
TypeMale JIC
Tube OD1"
StandardSAE J514 - Class 2A Thread
Thread Type1-11-1/2 NPTF
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Branch Tee
Weight1.38 lb
Cross References
Aeroquip203301-16-16S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
