HGW HYDRAULICS

2613-20-20-20-FG

1-1/4" Male NPTF 30° x 1-1/4" Female NPTF x 1-1/4" Male JIC

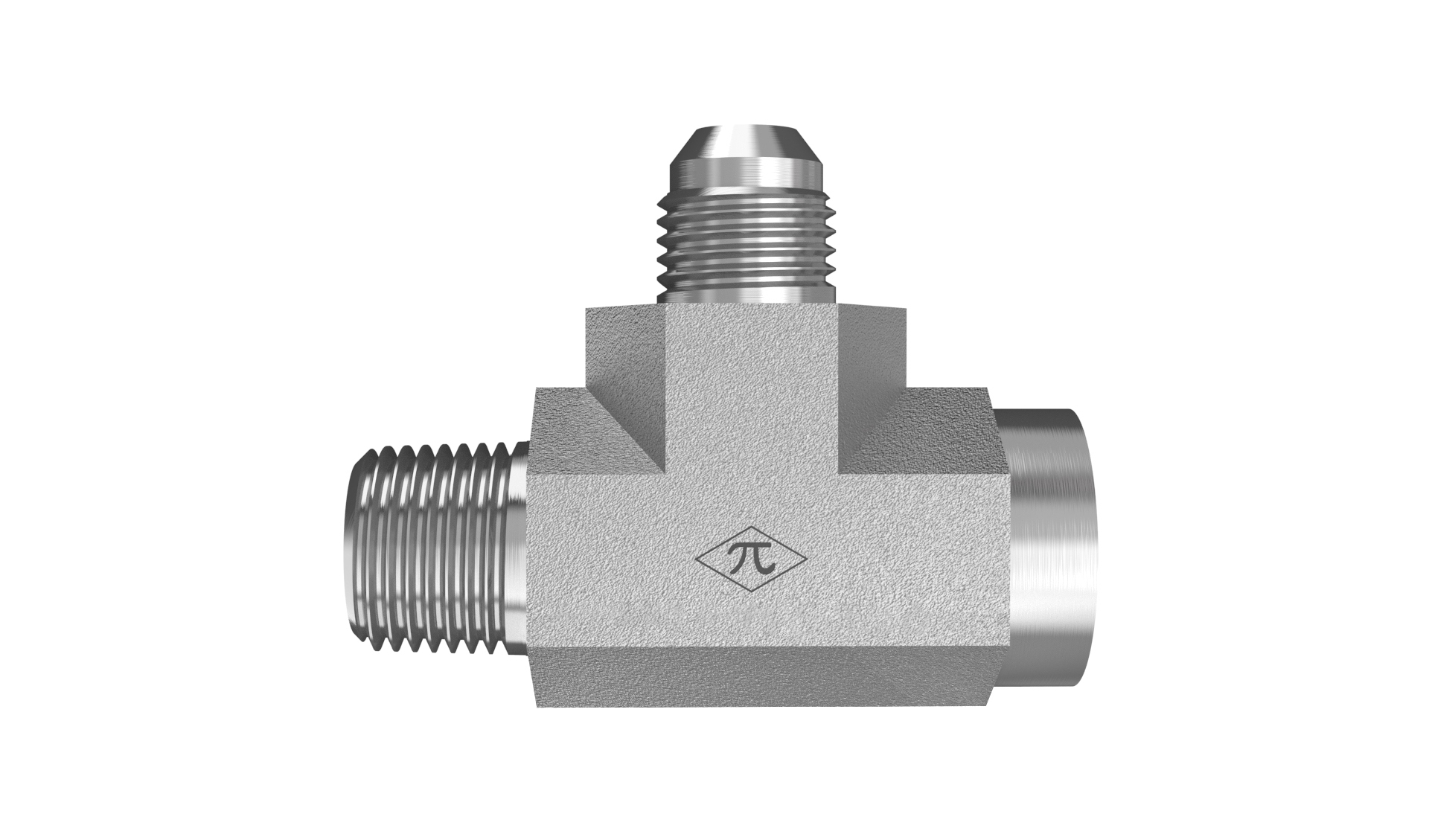

2613-20-20-20-FG is a 1-1/4" Male NPTF 30° x 1-1/4" Female NPTF x 1-1/4" Male JIC in the 2613-FG Series. For branching 37° flared tubes or lines to two pipes without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Male Branch Tee
$206.57
(0) Write a Review
SKU:
2613-20-20-20-FG

Product Details

Connection A
TypeMale NPTF 30°
Pipe Size1-1/4"
StandardSAE J476
Thread Type1-1/4-11-1/2 NPTF
Connection B
TypeFemale NPTF
Pipe Size1-1/4"
StandardSAE J476
Thread Type1-1/4-11-1/2 NPTF
Connection C
TypeMale JIC
Tube OD1-1/4"
StandardSAE J514 - Class 2A Thread
Thread Type1-1/4-11-1/2 NPTF
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Branch Tee
Weight1.98 lb
Cross References
Aeroquip203301-20-20S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
