HGW HYDRAULICS

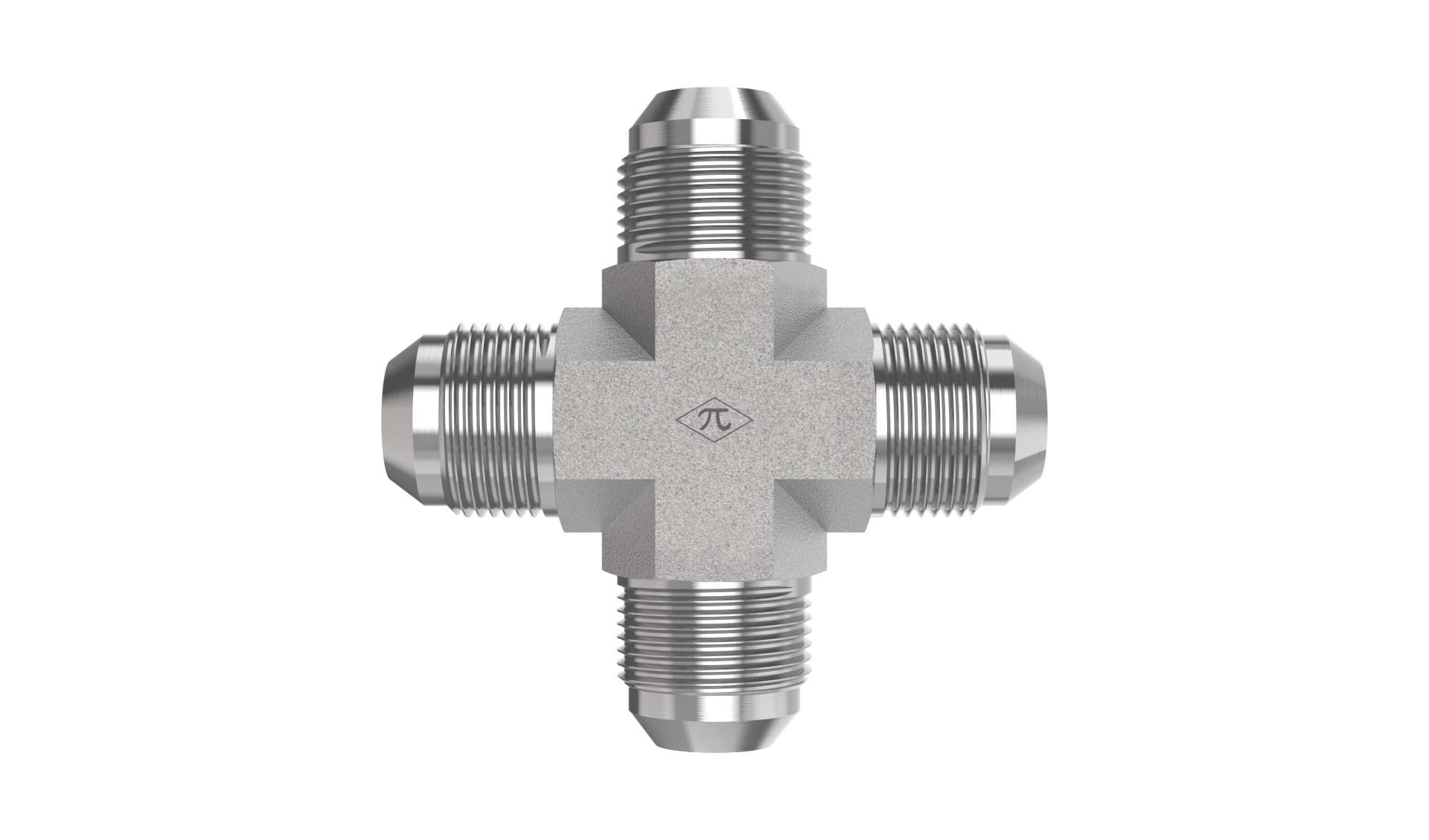

2650-04-04-04-04-FG

1/4" Male JIC x 1/4" Male JIC x 1/4" Male JIC x 1/4" Male JIC

2650-04-04-04-04-FG is a 1/4" Male JIC x 1/4" Male JIC x 1/4" Male JIC x 1/4" Male JIC in the 2650-FG Series. For joining four 37° flared tubes or lines in a cross configuration.

  • Steel
  • Trivalent Zinc
  • Union Cross
$8.36
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD1/4"
StandardSAE J514 - Class 2A Thread
Thread Type7/16-20 UNF
Connection B
TypeMale JIC
Tube OD1/4"
StandardSAE J514 - Class 2A Thread
Thread Type7/16-20 UNF
Connection C
TypeMale JIC
Tube OD1/4"
StandardSAE J514 - Class 2A Thread
Thread Type7/16-20 UNF
Connection D
TypeMale JIC
Tube OD1/4"
StandardSAE J514 - Class 2A Thread
Thread Type7/16-20 UNF
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeUnion Cross
Weight0.10 lb
Cross References
Aeroquip2020-4-4S
Parker4 KTX-S
SAE Ref.SAE J514 4-4-4-4 070501C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
