HGW HYDRAULICS

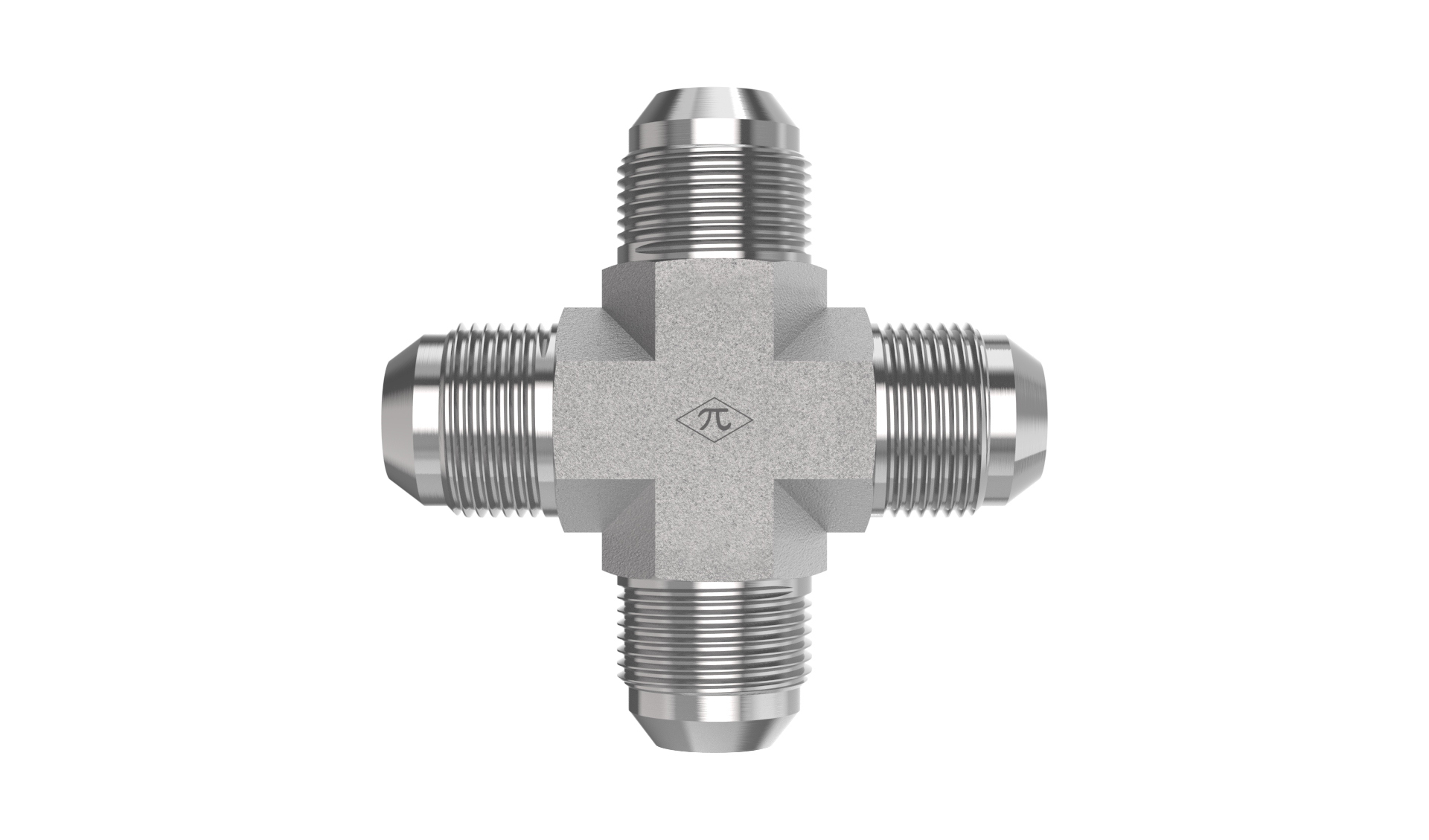

2650-05-05-05-05-FG

5/16" Male JIC x 5/16" Male JIC x 5/16" Male JIC x 5/16" Male JIC

2650-05-05-05-05-FG is a 5/16" Male JIC x 5/16" Male JIC x 5/16" Male JIC x 5/16" Male JIC in the 2650-FG Series. For joining four 37° flared tubes or lines in a cross configuration.

  • Steel
  • Trivalent Zinc
  • Union Cross
$9.37
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD5/16"
StandardSAE J514 - Class 2A Thread
Thread Type1/2-20 UNF
Connection B
TypeMale JIC
Tube OD5/16"
StandardSAE J514 - Class 2A Thread
Thread Type1/2-20 UNF
Connection C
TypeMale JIC
Tube OD5/16"
StandardSAE J514 - Class 2A Thread
Thread Type1/2-20 UNF
Connection D
TypeMale JIC
Tube OD5/16"
StandardSAE J514 - Class 2A Thread
Thread Type1/2-20 UNF
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeUnion Cross
Weight0.13 lb
Cross References
Aeroquip2020-5-5S
Parker5 KTX-S
SAE Ref.SAE J514 5-5-5-5 070501C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
