HGW HYDRAULICS

2650-06-06-06-06-FG

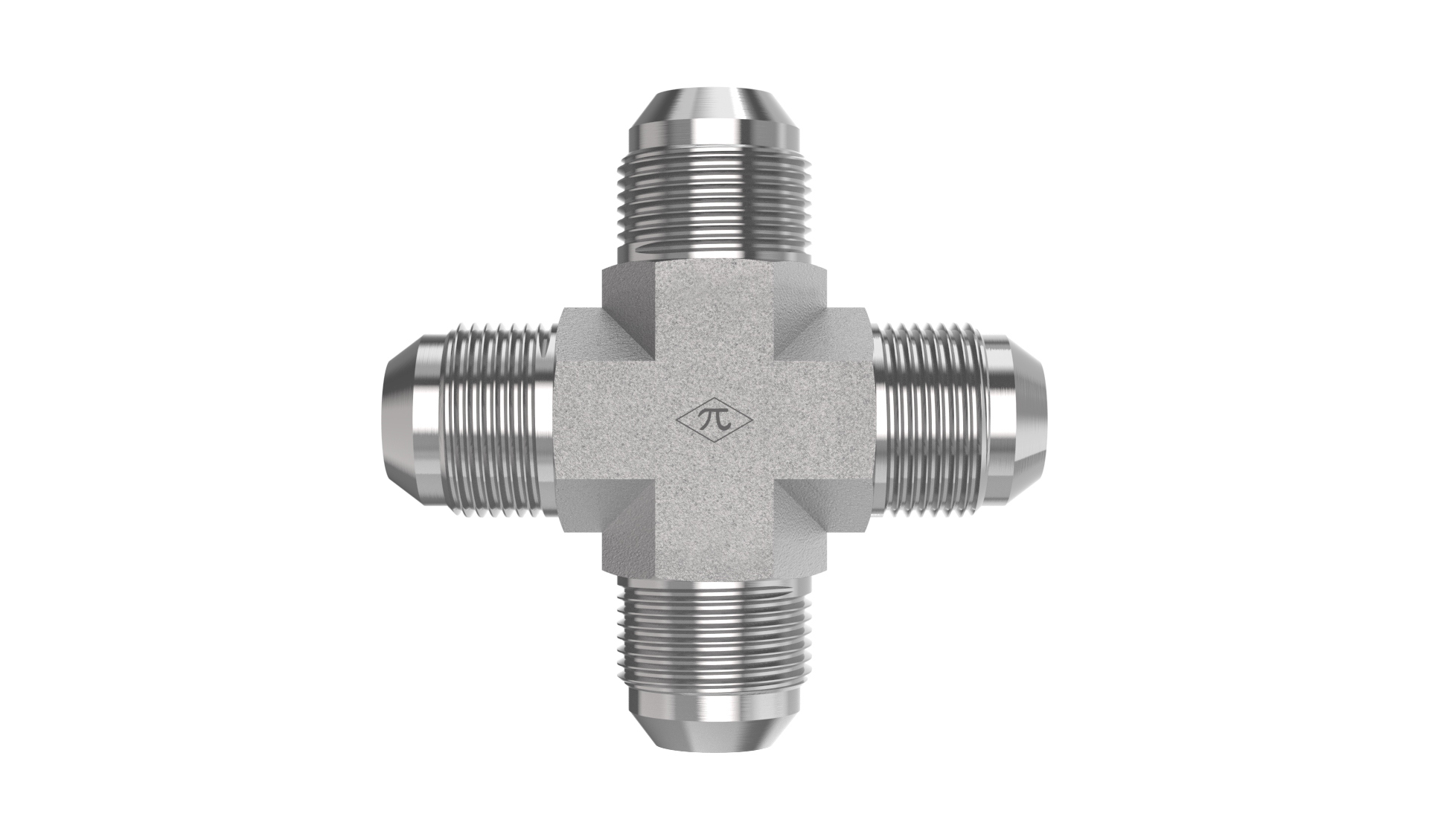

3/8" Male JIC x 3/8" Male JIC x 3/8" Male JIC x 3/8" Male JIC

2650-06-06-06-06-FG is a 3/8" Male JIC x 3/8" Male JIC x 3/8" Male JIC x 3/8" Male JIC in the 2650-FG Series. For joining four 37° flared tubes or lines in a cross configuration.

  • Steel
  • Trivalent Zinc
  • Union Cross
$9.70
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD3/8"
StandardSAE J514 - Class 2A Thread
Thread Type9/16-18 UNF
Connection B
TypeMale JIC
Tube OD3/8"
StandardSAE J514 - Class 2A Thread
Thread Type9/16-18 UNF
Connection C
TypeMale JIC
Tube OD3/8"
StandardSAE J514 - Class 2A Thread
Thread Type9/16-18 UNF
Connection D
TypeMale JIC
Tube OD3/8"
StandardSAE J514 - Class 2A Thread
Thread Type9/16-18 UNF
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeUnion Cross
Weight0.16 lb
Cross References
Aeroquip2020-6-6S
Parker6 KTX-S
SAE Ref.SAE J514 6-6-6-6 070501C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
