HGW HYDRAULICS

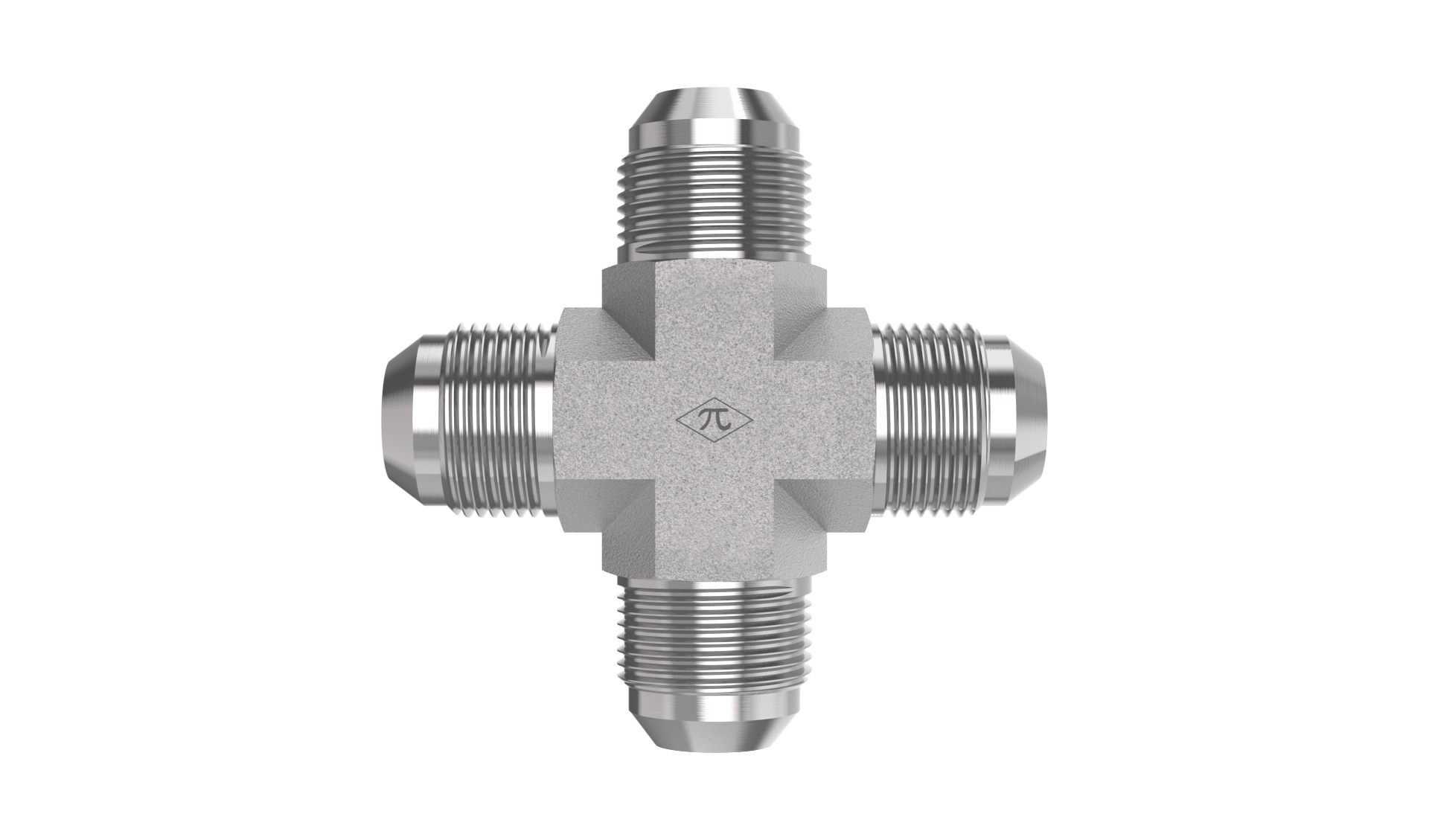

2650-12-12-12-12-FG

3/4" Male JIC x 3/4" Male JIC x 3/4" Male JIC x 3/4" Male JIC

2650-12-12-12-12-FG is a 3/4" Male JIC x 3/4" Male JIC x 3/4" Male JIC x 3/4" Male JIC in the 2650-FG Series. For joining four 37° flared tubes or lines in a cross configuration.

  • Steel
  • Trivalent Zinc
  • Union Cross
$25.43
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD3/4"
StandardSAE J514 - Class 2A Thread
Thread Type1-1/16-12 UN
Connection B
TypeMale JIC
Tube OD3/4"
StandardSAE J514 - Class 2A Thread
Thread Type1-1/16-12 UN
Connection C
TypeMale JIC
Tube OD3/4"
StandardSAE J514 - Class 2A Thread
Thread Type1-1/16-12 UN
Connection D
TypeMale JIC
Tube OD3/4"
StandardSAE J514 - Class 2A Thread
Thread Type1-1/16-12 UN
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeUnion Cross
Weight0.80 lb
Cross References
Aeroquip2020-12-12S
Parker12 KTX-S
SAE Ref.SAE J514 12-12-12-12 070501C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
