HGW HYDRAULICS

2650-12-12-12-12-SS

3/4" Male JIC x 3/4" Male JIC x 3/4" Male JIC x 3/4" Male JIC

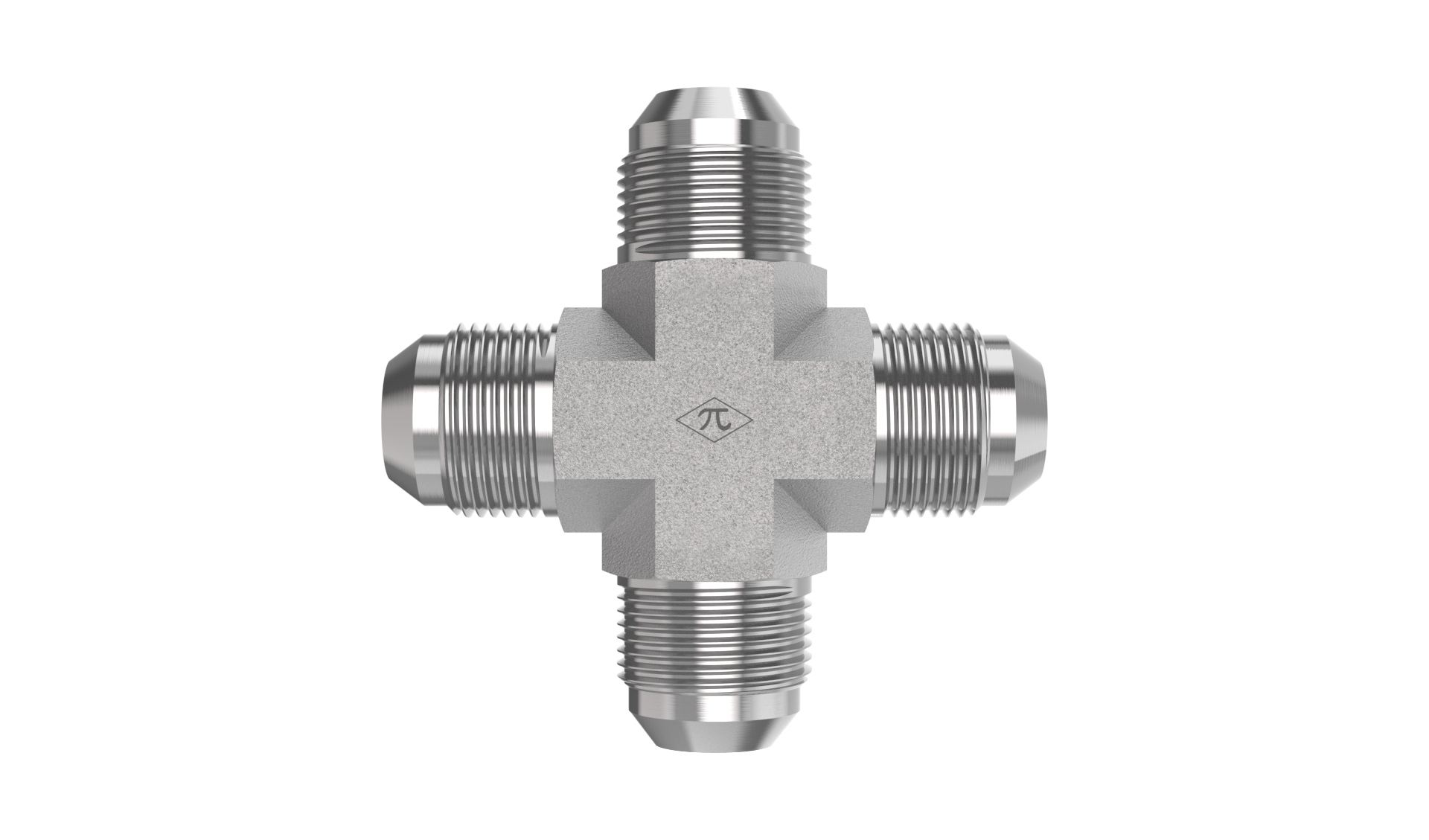

2650-12-12-12-12-SS is a 3/4" Male JIC x 3/4" Male JIC x 3/4" Male JIC x 3/4" Male JIC in the 2650-FG Series. For joining four 37° flared tubes or lines in a cross configuration.

  • Stainless Steel
  • Union Cross
  • None
$341.45
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD3/4"
StandardSAE J514 - Class 2A Thread
Thread Type1-1/16-12 UN
Connection B
TypeMale JIC
Tube OD3/4"
StandardSAE J514 - Class 2A Thread
Thread Type1-1/16-12 UN
Connection C
TypeMale JIC
Tube OD3/4"
StandardSAE J514 - Class 2A Thread
Thread Type1-1/16-12 UN
Connection D
TypeMale JIC
Tube OD3/4"
StandardSAE J514 - Class 2A Thread
Thread Type1-1/16-12 UN
Specifications
MaterialStainless Steel
ShapeUnion Cross
Weight0.82 lb
PlatingNone
Cross References
Aeroquip259-2020-12-12
Parker12 KTX-SS
SAE Ref.SAE J514 12-12-12-12 070501S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
