HGW HYDRAULICS

2650-16-16-16-16-FG

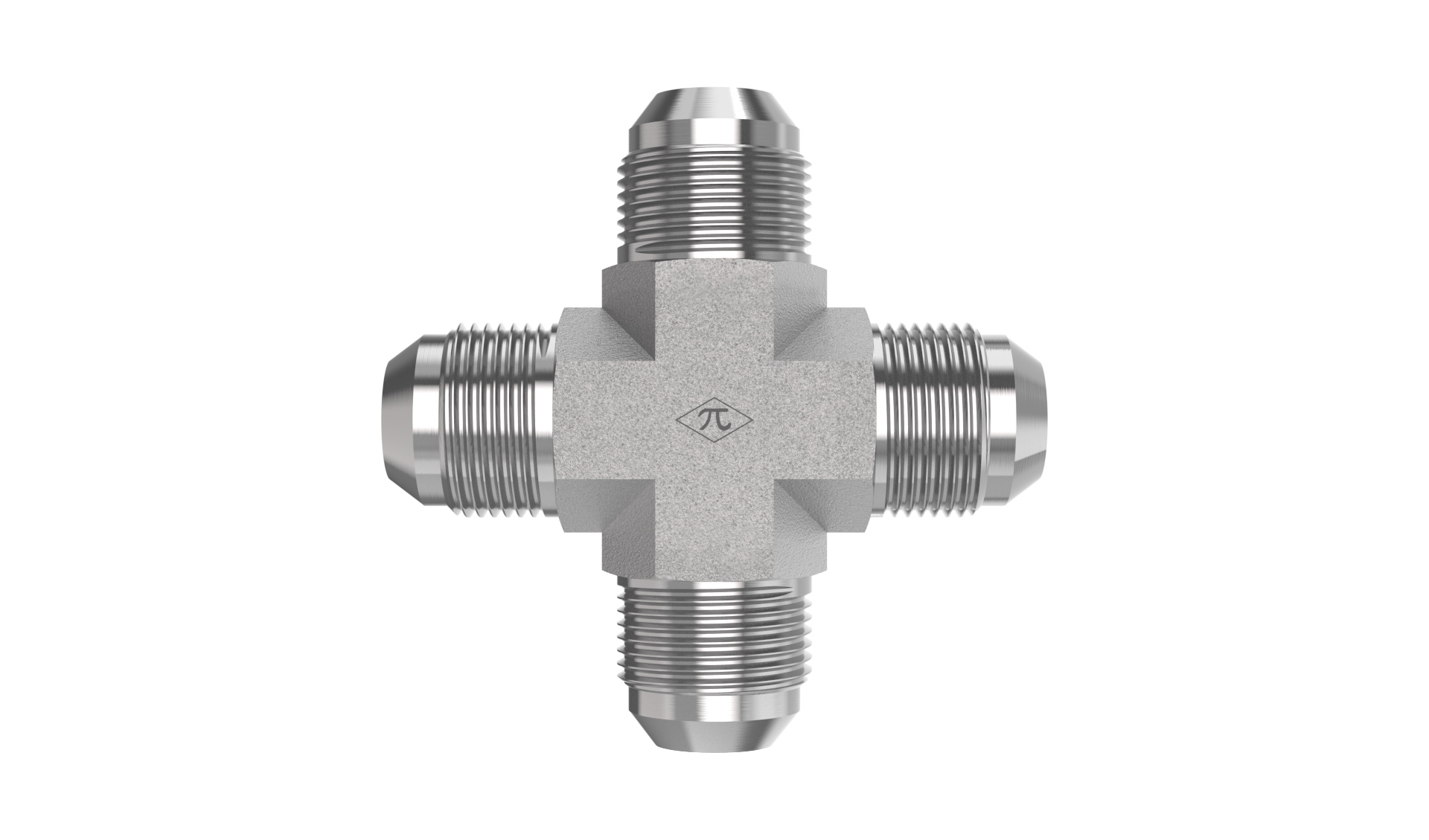

1" Male JIC x 1" Male JIC x 1" Male JIC x 1" Male JIC

2650-16-16-16-16-FG is a 1" Male JIC x 1" Male JIC x 1" Male JIC x 1" Male JIC in the 2650-FG Series. For joining four 37° flared tubes or lines in a cross configuration.

  • Steel
  • Trivalent Zinc
  • Union Cross
$37.16
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD1"
StandardSAE J514 - Class 2A Thread
Thread Type1-5/16-12 UN
Connection B
TypeMale JIC
Tube OD1"
StandardSAE J514 - Class 2A Thread
Thread Type1-5/16-12 UN
Connection C
TypeMale JIC
Tube OD1"
StandardSAE J514 - Class 2A Thread
Thread Type1-5/16-12 UN
Connection D
TypeMale JIC
Tube OD1"
StandardSAE J514 - Class 2A Thread
Thread Type1-5/16-12 UN
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeUnion Cross
Weight1.13 lb
Cross References
Aeroquip2020-16-16S
Parker16 KTX-S
SAE Ref.SAE J514 16-16-16-16 070501C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
