HGW HYDRAULICS

2650-16-16-16-16-SS

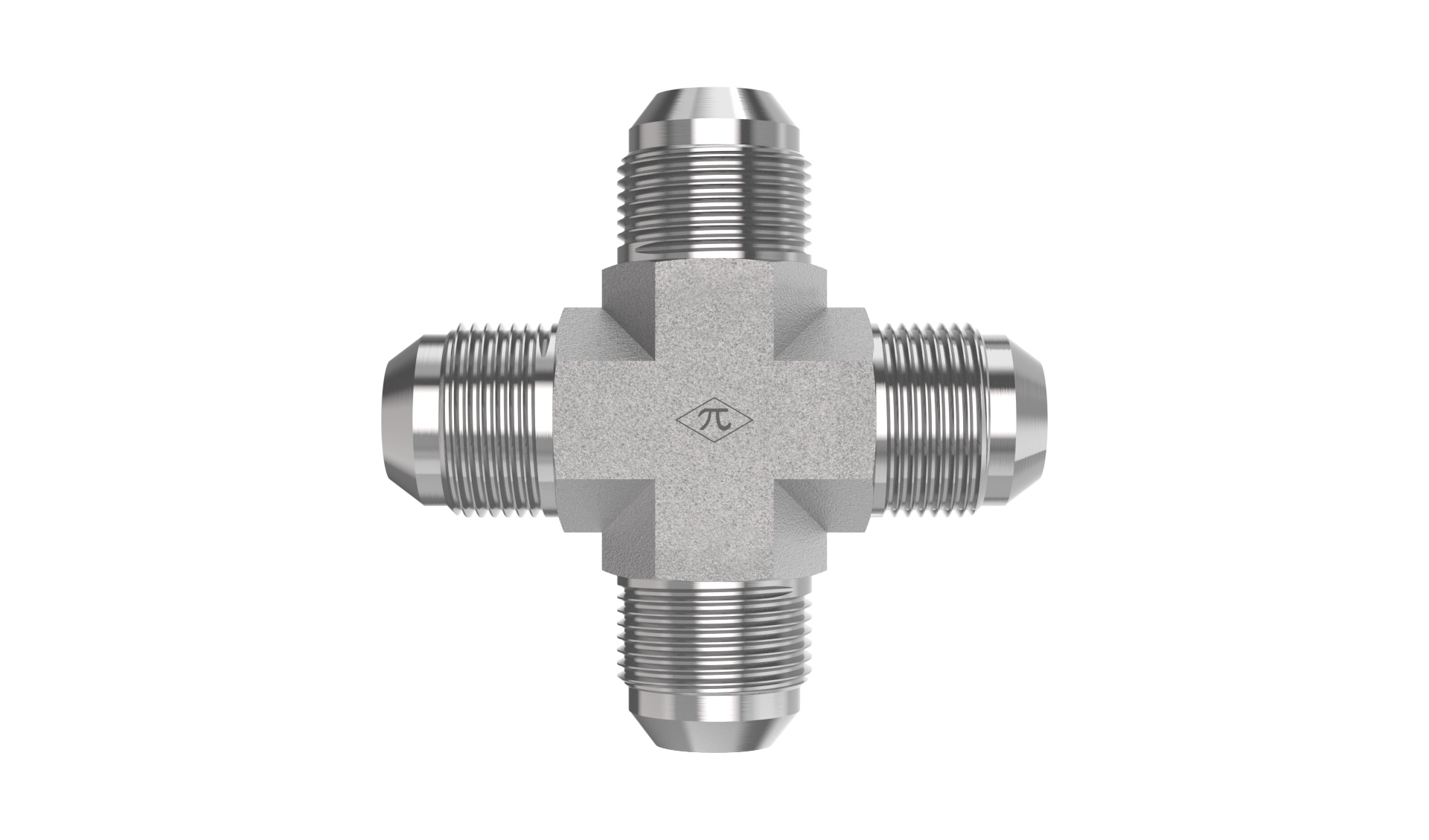

1" Male JIC 37° Flare × 1" Male JIC 37° Flare × 1" Male JIC 37° Flare × 1" Male JIC 37° Flare · Union Cross

The HGW 2650-16-16-16-16-SS is a union cross joining 1" male JIC 37° flare connections across all 4 ports. Made from stainless steel, it uses SAE J514 interfaces for compatible hydraulic applications.

  • Stainless Steel
  • Union Cross
$271.20
(0) Write a Review
SKU:
2650-16-16-16-16-SS

Product Details

Connection A
TypeMale JIC 37° Flare
Tube Size1"
StandardSAE J514 · Class 2A Thread
Thread1-5/16-12
Connection B
TypeMale JIC 37° Flare
Tube Size1"
StandardSAE J514 · Class 2A Thread
Thread1-5/16-12
Connection C
TypeMale JIC 37° Flare
Tube Size1"
StandardSAE J514 · Class 2A Thread
Thread1-5/16-12
Connection D
TypeMale JIC 37° Flare
Tube Size1"
StandardSAE J514 · Class 2A Thread
Thread1-5/16-12
Specifications
MaterialStainless Steel
ShapeUnion Cross
Weight1.17 lb
Cross References
Aeroquip259-2020-16-16
Parker16 KTX-SS
SAE Ref.SAE J514 16-16-16-16 070501S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
