HGW HYDRAULICS

2700-02-02

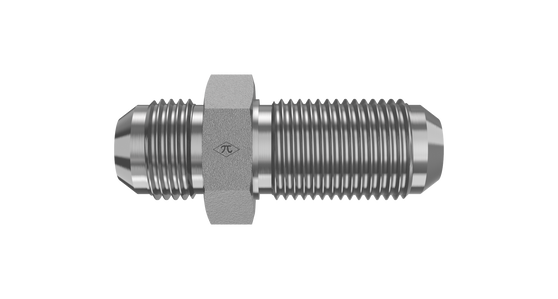

1/8" Male JIC 37° Bulkhead × 1/8" Male JIC 37° Flare · Bulkhead

The HGW 2700-02-02 is a bulkhead joining 1/8" male JIC 37° bulkhead to 1/8" male JIC 37° flare. Made from trivalent-zinc-plated steel, it uses SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Bulkhead
$26.72
(0) Write a Review
SKU:
2700-02-02

Product Details

Connection A
TypeMale JIC 37° Bulkhead
Tube OD1/8"
StandardSAE J514 · Class 2A Thread
Thread Type5/16-24 UNF
Connection B
TypeMale JIC 37° Flare
Tube OD1/8"
StandardSAE J514 · Class 2A Thread
Thread Type5/16-24 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeBulkhead
Weight0.05 lb
Cross References
Aeroquip2041-1-2-2S
Parker2 WTX-S
SAE Ref.SAE J514 2-2 070601C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
