HGW HYDRAULICS

2700-04-04

1/4" Male JIC 37° Bulkhead × 1/4" Male JIC 37° Flare · Bulkhead

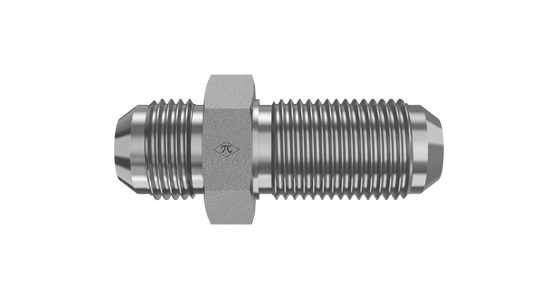

The HGW 2700-04-04 is a bulkhead joining 1/4" male JIC 37° bulkhead to 1/4" male JIC 37° flare. Made from trivalent-zinc-plated steel, it uses SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Bulkhead
$1.84
(0) Write a Review
SKU:
2700-04-04

Product Details

Connection A
TypeMale JIC 37° Bulkhead
Tube OD1/4"
StandardSAE J514 · Class 2A Thread
Thread Type7/16-20 UNF
Connection B
TypeMale JIC 37° Flare
Tube OD1/4"
StandardSAE J514 · Class 2A Thread
Thread Type7/16-20 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeBulkhead
Weight0.08 lb
Cross References
Aeroquip2041-1-4-4S
Parker4 WTX-S
SAE Ref.SAE J514 4-4 070601C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
