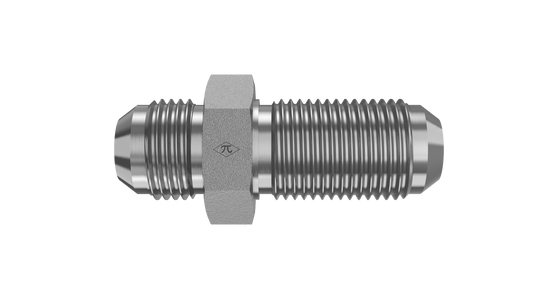

HGW 2700 shared series image [4275300c527a]

HGW HYDRAULICS

2700-05-05

5/16" Male JIC Bulkhead x 5/16" Male JIC

2700-05-05 is a 5/16" Male JIC Bulkhead x 5/16" Male JIC in the 2700 Series. For routing a 37° flared tube or line through a panel or wall in a straight configuration, secured with a bulkhead locknut.

  • Steel
  • Trivalent Zinc
  • Bulkhead
$2.36
(0) Write a Review

Product Details

Connection A
TypeMale JIC Bulkhead
Tube OD5/16"
StandardSAE J514 - Class 2A Thread
Thread Type1/2-20 UNF
Connection B
TypeMale JIC
Tube OD5/16"
StandardSAE J514 - Class 2A Thread
Thread Type1/2-20 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeBulkhead
Weight0.10 lb
Cross References
Aeroquip2041-1-5-5S
Parker5 WTX-S
SAE Ref.SAE J514 5-5 070601C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
