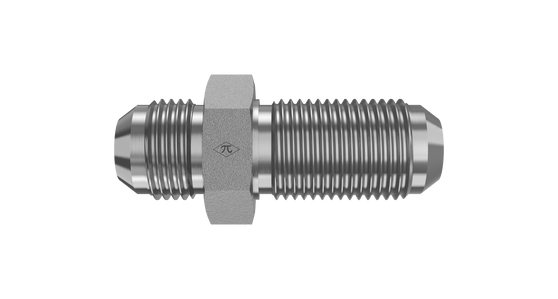

HGW 2700 shared series image [4275300c527a]

HGW HYDRAULICS

2700-06-04

3/8" Male JIC 37° Bulkhead × 1/4" Male JIC 37° Flare · Bulkhead

The HGW 2700-06-04 is a bulkhead joining 3/8" male JIC 37° bulkhead to 1/4" male JIC 37° flare. Made from trivalent-zinc-plated steel, it uses SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Bulkhead
$5.64
(0) Write a Review
SKU:
2700-06-04

Product Details

Connection A
TypeMale JIC 37° Bulkhead
Tube OD3/8"
StandardSAE J514 · Class 2A Thread
Thread Type9/16-18 UNF
Connection B
TypeMale JIC 37° Flare
Tube OD1/4"
StandardSAE J514 · Class 2A Thread
Thread Type9/16-18 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeBulkhead
Weight0.10 lb
Cross References
Aeroquip2041-1-4-6S
Parker6-4 WTX-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
