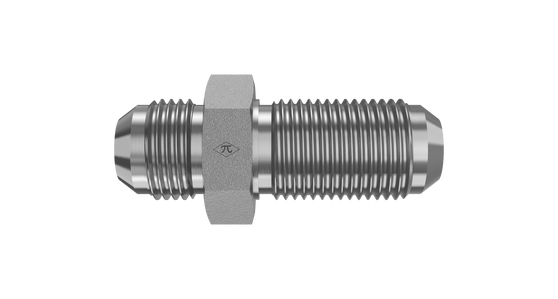

HGW 2700 shared series image [4275300c527a]

HGW HYDRAULICS

2700-06-06-B

3/8" Male JIC Bulkhead x 3/8" Male JIC

2700-06-06-B is a 3/8" Male JIC Bulkhead x 3/8" Male JIC in the 2700 Series. For routing a 37° flared tube or line through a panel or wall in a straight configuration, secured with a bulkhead locknut.

  • Brass
  • Natural Finish
  • Bulkhead
$10.55
(0) Write a Review

Product Details

Connection A
TypeMale JIC Bulkhead
Tube OD3/8"
StandardSAE J514 - Class 2A Thread
Thread Type9/16-18 UNF
Connection B
TypeMale JIC
Tube OD3/8"
StandardSAE J514 - Class 2A Thread
Thread Type9/16-18 UNF
Connection C
Connection D
Specifications
MaterialBrass
PlatingNatural Finish
ShapeBulkhead
Weight0.13 lb
Cross References
Aeroquip2041-1-6-6B
Parker6 WTX-B
SAE Ref.SAE J514 6-6 070601B

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
