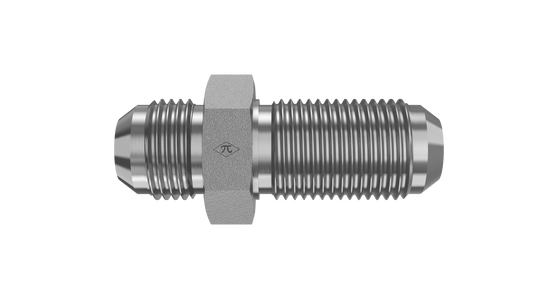

HGW 2700 shared series image [4275300c527a]

HGW HYDRAULICS

2700-06-06

3/8" Male JIC 37° Bulkhead × 3/8" Male JIC 37° Flare · Bulkhead

The HGW 2700-06-06 is a bulkhead joining 3/8" male JIC 37° bulkhead to 3/8" male JIC 37° flare. Made from trivalent-zinc-plated steel, it uses SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Bulkhead
$1.79
(0) Write a Review
SKU:
2700-06-06

Product Details

Connection A
TypeMale JIC 37° Bulkhead
Tube OD3/8"
StandardSAE J514 · Class 2A Thread
Thread Type9/16-18 UNF
Connection B
TypeMale JIC 37° Flare
Tube OD3/8"
StandardSAE J514 · Class 2A Thread
Thread Type9/16-18 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeBulkhead
Weight0.12 lb
Cross References
Aeroquip2041-1-6-6S
Parker6 WTX-S
SAE Ref.SAE J514 6-6 070601C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
