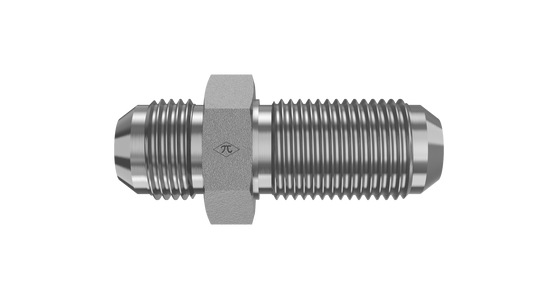

HGW 2700 shared series image [4275300c527a]

HGW HYDRAULICS

2700-08-08-B

1/2" Male JIC Bulkhead x 1/2" Male JIC

2700-08-08-B is a 1/2" Male JIC Bulkhead x 1/2" Male JIC in the 2700 Series. For routing a 37° flared tube or line through a panel or wall in a straight configuration, secured with a bulkhead locknut.

  • Brass
  • Natural Finish
  • Bulkhead
$35.98
(0) Write a Review

Product Details

Connection A
TypeMale JIC Bulkhead
Tube OD1/2"
StandardSAE J514 - Class 2A Thread
Thread Type3/4-16 UNF
Connection B
TypeMale JIC
Tube OD1/2"
StandardSAE J514 - Class 2A Thread
Thread Type3/4-16 UNF
Connection C
Connection D
Specifications
MaterialBrass
PlatingNatural Finish
ShapeBulkhead
Weight0.23 lb
Cross References
Aeroquip2041-1-8-8B
Parker8 WTX-B
SAE Ref.SAE J514 8-8 070601B

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
