HGW HYDRAULICS

2700-10-10

5/8" Male JIC 37° Bulkhead × 5/8" Male JIC 37° Flare · Bulkhead

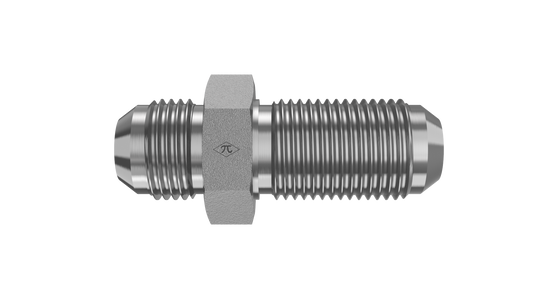

The HGW 2700-10-10 is a bulkhead joining 5/8" male JIC 37° bulkhead to 5/8" male JIC 37° flare. Made from trivalent-zinc-plated steel, it uses SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Bulkhead
$4.16
(0) Write a Review
SKU:
2700-10-10

Product Details

Connection A
TypeMale JIC 37° Bulkhead
Tube OD5/8"
StandardSAE J514 · Class 2A Thread
Thread Type7/8-14 UNF
Connection B
TypeMale JIC 37° Flare
Tube OD5/8"
StandardSAE J514 · Class 2A Thread
Thread Type7/8-14 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeBulkhead
Weight0.30 lb
Cross References
Aeroquip2041-1-10-10S
Parker10 WTX-S
SAE Ref.SAE J514 10-10 070601C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
