HGW HYDRAULICS

2700-14-14-SS

7/8" Male JIC 37° Bulkhead × 7/8" Male JIC 37° Flare · Bulkhead

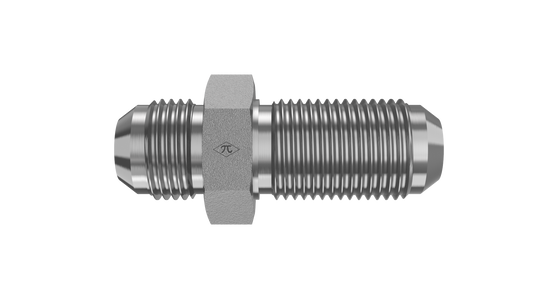

The HGW 2700-14-14-SS is a bulkhead joining 7/8" male JIC 37° bulkhead to 7/8" male JIC 37° flare. Made from stainless steel, it uses SAE J514 interfaces for compatible hydraulic applications.

  • Stainless Steel
  • Bulkhead
$236.07
(0) Write a Review
SKU:
2700-14-14-SS

Product Details

Connection A
TypeMale JIC 37° Bulkhead
Tube OD7/8"
StandardSAE J514 · Class 2A Thread
Thread Type1-3/16-12 UN
Connection B
TypeMale JIC 37° Flare
Tube OD7/8"
StandardSAE J514 · Class 2A Thread
Thread Type1-3/16-12 UN
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeBulkhead
Weight0.61 lb
Cross References
Aeroquip259-2041-1-14-14
Parker14 WTX-SS
SAE Ref.SAE J514 14-14 070601S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
