HGW HYDRAULICS

2700-16-12

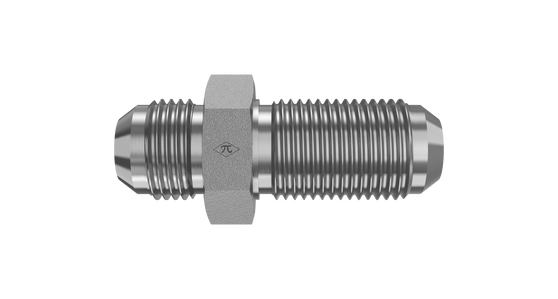

1" Male JIC 37° Bulkhead × 3/4" Male JIC 37° Flare · Bulkhead

The HGW 2700-16-12 is a bulkhead joining 1" male JIC 37° bulkhead to 3/4" male JIC 37° flare. Made from trivalent-zinc-plated steel, it uses SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Bulkhead
$10.72
(0) Write a Review
SKU:
2700-16-12

Product Details

Connection A
TypeMale JIC 37° Bulkhead
Tube OD1"
StandardSAE J514 · Class 2A Thread
Thread Type1-5/16-12 UN
Connection B
TypeMale JIC 37° Flare
Tube OD3/4"
StandardSAE J514 · Class 2A Thread
Thread Type1-5/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeBulkhead
Weight0.62 lb
Cross References
Aeroquip2041-1-12-16S
Parker16-12 WTX-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
