HGW HYDRAULICS

2700-20-20

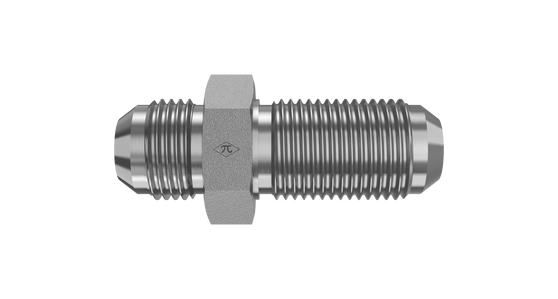

1-1/4" Male JIC 37° Bulkhead × 1-1/4" Male JIC 37° Flare · Bulkhead

The HGW 2700-20-20 is a bulkhead joining 1-1/4" male JIC 37° bulkhead to 1-1/4" male JIC 37° flare. Made from trivalent-zinc-plated steel, it uses SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Bulkhead
$13.10
(0) Write a Review
SKU:
2700-20-20

Product Details

Connection A
TypeMale JIC 37° Bulkhead
Tube OD1-1/4"
StandardSAE J514 · Class 2A Thread
Thread Type1-5/8-12 UN
Connection B
TypeMale JIC 37° Flare
Tube OD1-1/4"
StandardSAE J514 · Class 2A Thread
Thread Type1-5/8-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeBulkhead
Weight1.04 lb
Cross References
Aeroquip2041-1-20-20S
Parker20 WTX-S
SAE Ref.SAE J514 20-20 070601C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
