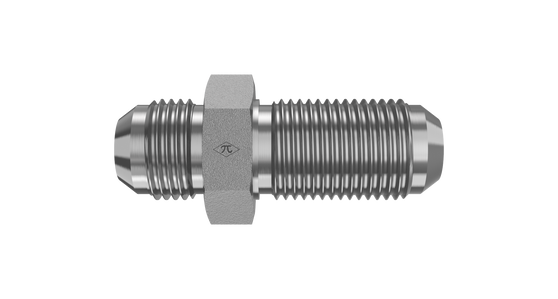

HGW 2700 shared series image [4275300c527a]

HGW HYDRAULICS

2700-24-24

1-1/2" Male JIC Bulkhead x 1-1/2" Male JIC

2700-24-24 is a 1-1/2" Male JIC Bulkhead x 1-1/2" Male JIC in the 2700 Series. For routing a 37° flared tube or line through a panel or wall in a straight configuration, secured with a bulkhead locknut.

  • Steel
  • Trivalent Zinc
  • Bulkhead
$22.29
(0) Write a Review

Product Details

Connection A
TypeMale JIC Bulkhead
Tube OD1-1/2"
StandardSAE J514 - Class 2A Thread
Thread Type1-7/8-12 UN
Connection B
TypeMale JIC
Tube OD1-1/2"
StandardSAE J514 - Class 2A Thread
Thread Type1-7/8-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeBulkhead
Weight1.34 lb
Cross References
Aeroquip2041-1-24-24S
Parker24 WTX-S
SAE Ref.SAE J514 24-24 070601C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
