HGW HYDRAULICS

2700-32-32-SS

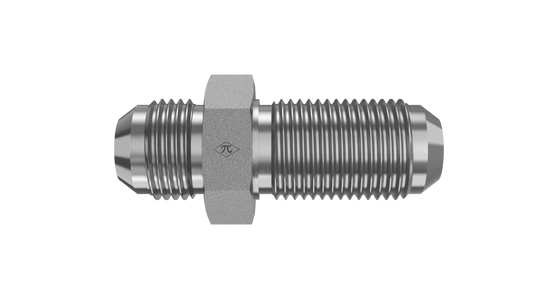

2" Male JIC Bulkhead x 2" Male JIC

2700-32-32-SS is a 2" Male JIC Bulkhead x 2" Male JIC in the 2700 Series. For routing a 37° flared tube or line through a panel or wall in a straight configuration, secured with a bulkhead locknut.

  • Stainless Steel
  • Bulkhead
  • None
$480.01
(0) Write a Review

Product Details

Connection A
TypeMale JIC Bulkhead
Tube OD2"
StandardSAE J514 - Class 2A Thread
Thread Type2-1/2-12 UN
Connection B
TypeMale JIC
Tube OD2"
StandardSAE J514 - Class 2A Thread
Thread Type2-1/2-12 UN
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeBulkhead
Weight2.80 lb
PlatingNone
Cross References
Aeroquip259-2041-1-32-32
Parker32 WTX-SS
SAE Ref.SAE J514 32-32 070601S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
