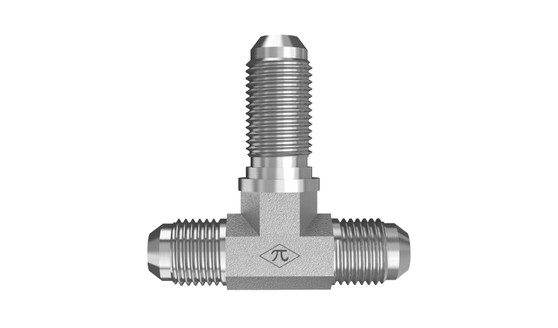

2703-FG series product image

2703-03-03-03-SS

3/16" Male JIC x 3/16" Male JIC x 3/16" Male JIC

2703-03-03-03-SS is a 3/16" Male JIC x 3/16" Male JIC x 3/16" Male JIC in the 2703-FG Series. SAE J514 37° Flare Bulkhead Branch Tee.

  • Stainless Steel
  • Bulkhead Branch Tee
  • None
$19.25
(0) Write a Review
SKU:
2703-03-03-03-SS

Product Details

Connection A
TypeMale JIC
Tube OD3/16"
StandardSAE J514
Thread Type3/8-24 UNF
Connection B
TypeMale JIC
Tube OD3/16"
StandardSAE J514
Thread Type3/8-24 UNF
Connection C
TypeMale JIC
Tube OD3/16"
StandardSAE J514
Thread Type3/8-24 UNF
Connection D
Specifications
MaterialStainless Steel
Weight0.09 lb
ShapeBulkhead Branch Tee
PlatingNone
Cross References
Aeroquip259-203002-1-3-3
Parker3 WJTX-SS
SAE Ref.SAE J514 3-3-3 070959S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
