2703-FG series product image

2703-04-04-04-FG

1/4" Male JIC x 1/4" Male JIC x 1/4" Male JIC

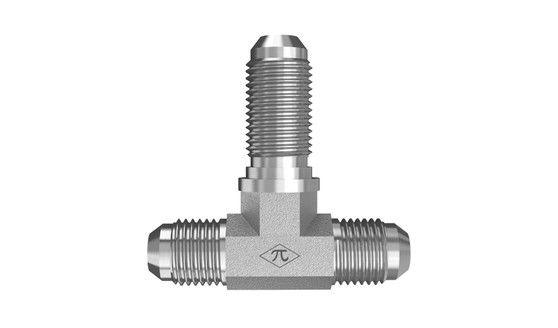

2703-04-04-04-FG is a 1/4" Male JIC x 1/4" Male JIC x 1/4" Male JIC in the 2703-FG Series. SAE J514 37° Flare Bulkhead Branch Tee.

  • Steel
  • Trivalent Zinc
  • Bulkhead Branch Tee
$6.14
(0) Write a Review
SKU:
2703-04-04-04-FG

Product Details

Connection A
TypeMale JIC
Tube OD1/4"
StandardSAE J514
Thread Type7/16-20 UNF
Connection B
TypeMale JIC
Tube OD1/4"
StandardSAE J514
Thread Type7/16-20 UNF
Connection C
TypeMale JIC
Tube OD1/4"
StandardSAE J514
Thread Type7/16-20 UNF
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight0.11 lb
ShapeBulkhead Branch Tee
Cross References
Aeroquip203002-1-4-4S
Parker4 WJTX-S
SAE Ref.SAE J514 4-4-4 070959C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
